Laser Trimming Machine

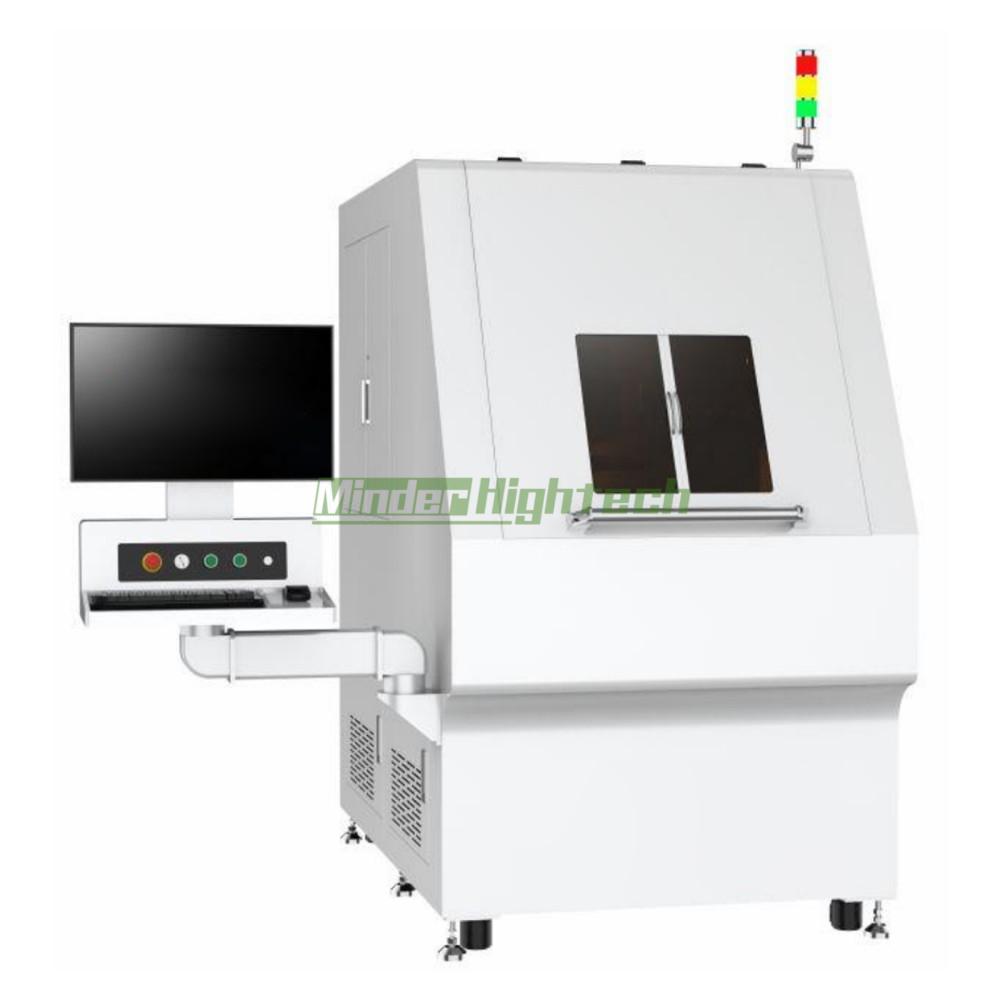

MDSG-LT70 Laser Trimming Machine (High Configuration for Thick Film)

MDSG-LT70
Product description: Laser Trimming Machine
INQUIRY

Equipment Features

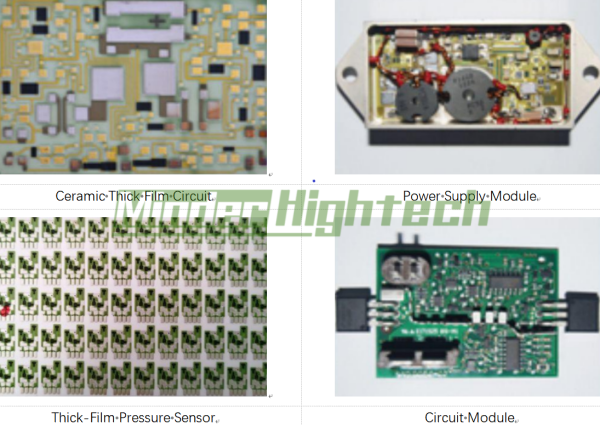

1. This equipment is designed for laser trimming of high-end thick-film circuits. Its core components feature imported configurations.

2. Including a solid-state laser imported directly from Germany for superior cut quality.

3. Equipped with a high-precision linear motor XY platform,

4. It incorporates achromatic imaging technology and image recognition positioning capabilities. The latest generation measurement and control system delivers outstanding measurement accuracy and speed.

5. The marble worktable ensures excellent machine stability.

Technical Parameters

Model	MDSG-LT70
Laser wavelength	1064nm
Laser power	7W@10KHz
Typical Spot Size	35μm
Focusing Method	Automatic, computer program controlled.
Cooling Method	Air cooling
Laser Beam Movement Range	50mm x 50mm (optional)
Movement resolution	1μm
Repeat Positioning Accuracy	±2.5µm
Movement Mode	Linear motor with grating ruler
Motion Range	300mm*300mm
Repeat Positioning Accuracy	±1.5µm
Resistance Measurement Method	4-wire measurement
Resistance Measurement Accuracy	±0.02% (medium resistance)
Resistance Measurement Range	0.1Ω-50MΩ
Measurement Speed	4µs/measurement
Zero and Full-Scale Error Correction	Automatic correction
Probe Definition	Programmable arbitrary setting
Probe Card Specification	Standard P48
Equipment Dimension	1430 x 913 x 1747mm
Weight	617Kg
Operating Conditions (Water, Electricity, Gas)	Humidity: <70%; Power supply: AC 220V 2.5kW; Compressed air: <0.6MPa, <40L/min
