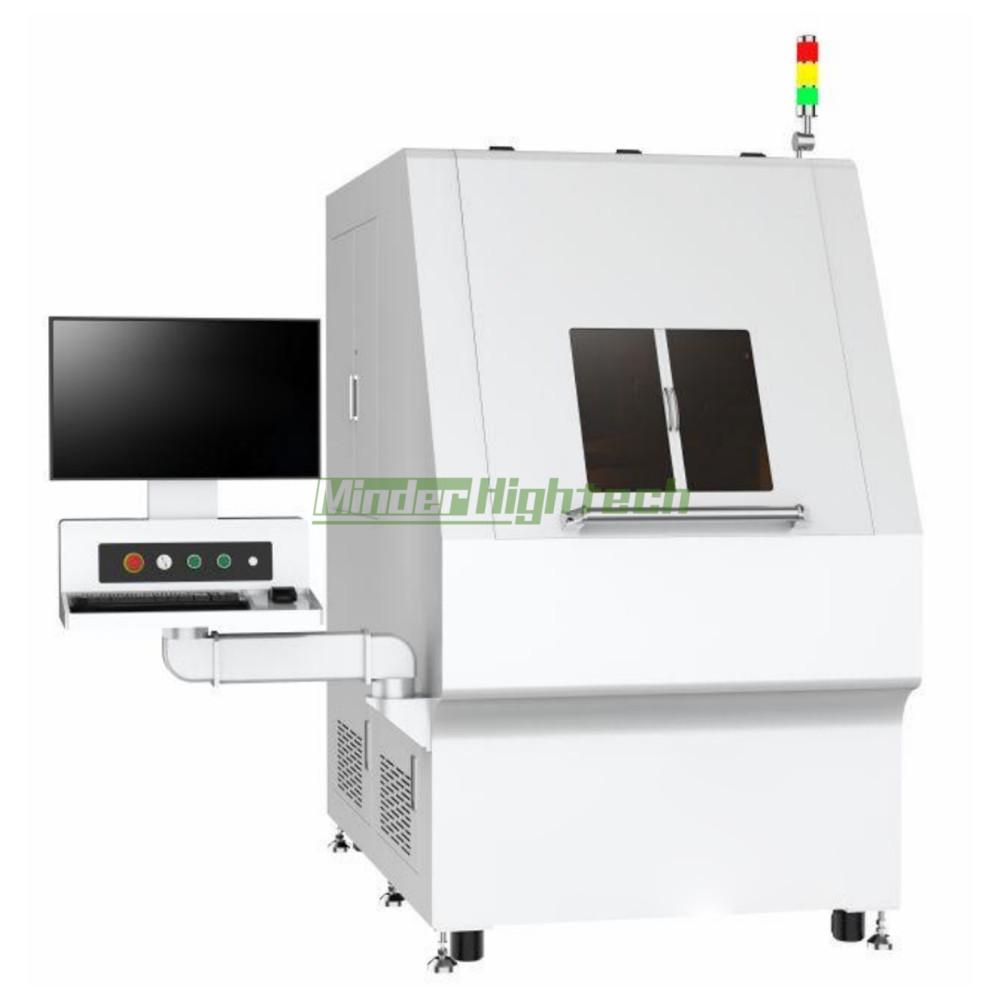

Laser Trimming Machine

Laser trimming machine for General purpose

Equipment Features

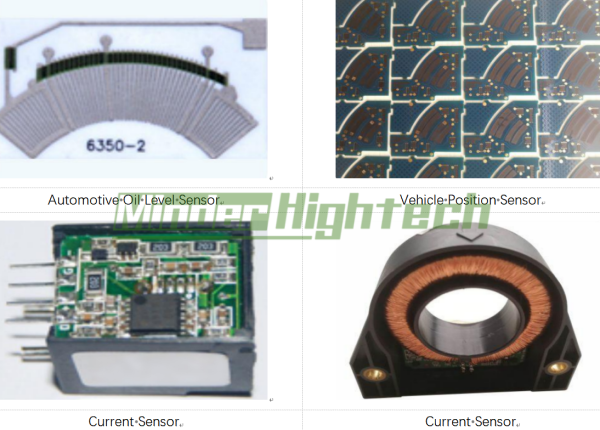

1.This equipment is designed for laser retuning of general-purpose ceramic thick and thin film circuits.

2.Equipped with a solid-state laser from a leading brand, it meets conventional material processing requirements.

3.Features a linear motor XY platform, ensuring high positioning accuracy and repeatability.

4.Incorporates achromatic imaging technology and image recognition positioning capabilities.

5.Utilizes the latest generation measurement and control system, delivering outstanding measurement precision and speed.

6.Marble worktable provides excellent machine stability.

Technical Parameters

Model	MDSG-LT73
Laser wavelength	1064/532nm
Laser power	6W/4W
Typical Spot Size	25-35μm
Focusing Method	Automatic, computer program controlled.
Cooling Method	Air cooling
Laser Beam Movement Range	50mm X 50mm
Movement resolution	1μm
Repeat Positioning Accuracy	±2.5µm
Movement Mode	Linear motor with grating ruler
Motion Range	300mm*300mm
Repeat Positioning Accuracy	±1.5µm
Resistance Measurement Method	4-wire measurement
Resistance Measurement Accuracy	± 0.02% (medium resistance)
Resistance Measurement Range	0.1Ω-50MΩ
Measurement Speed	4µs/measurement
Zero and Full-Scale Error Correction	Automatic correction
Probe Definition	Programmable arbitrary setting
Probe Card Specification	Standard P48
Equipment Dimension	1430 x 913 x 1747mm
Weight	617Kg
Operating Conditions (Water, Electricity, Gas)	Humidity: <70%; Power supply: AC 220V 2.5kW; Compressed air: <0.6MPa, <40L/min
