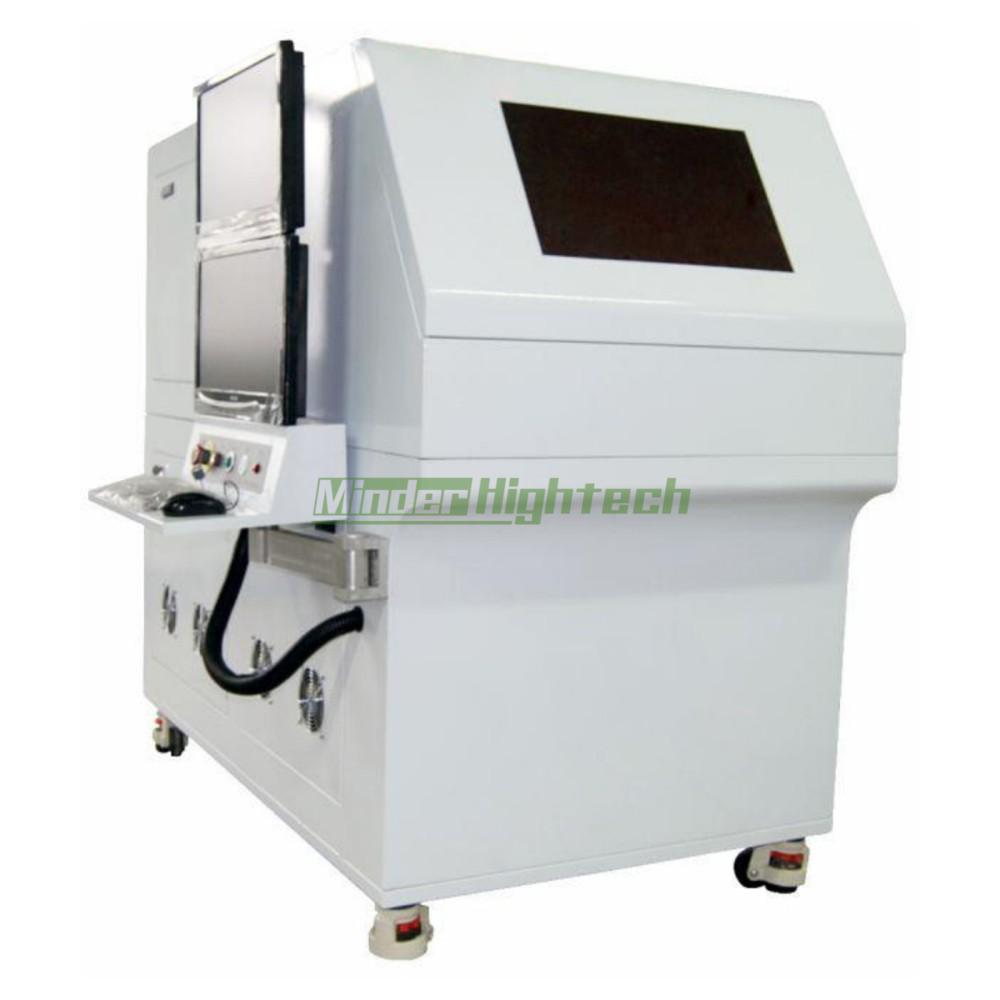

Laser Trimming Machine

Laser trimming machine(Thick Film Economy)

Equipment Features

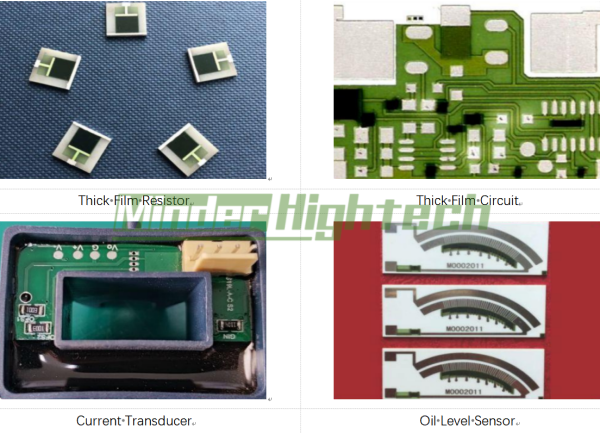

1. This equipment is designed for laser retuning of economical thick-film circuits.

2. Equipped with fiber lasers from leading brands.

3. Features a servo motor-driven XY platform for stable and reliable performance.

4. Incorporates the latest generation of measurement and control systems, delivering outstanding measurement accuracy and speed.

5. Compact overall structure with high cost-performance ratio.

Technical Parameters

Model	MDSG-LT72
Laser wavelength	1064nm
Laser power	20W
Typical Spot Size	40μm
Focusing Method	Automatic, computer program controlled.
Cooling Method	Air cooling
Laser Beam Movement Range	100mm X 100mm
Movement resolution	1.5μm
Repeat Positioning Accuracy	±5μm
Movement Mode	Servo motor
Motion Range	300mm*300mm
Repeat Positioning Accuracy	±1.5µm
Resistance Measurement Method	4-wire measurement
Resistance Measurement Accuracy	±0.02% (medium resistance)
Resistance Measurement Range	0.1Ω-50MΩ
Measurement Speed	4µs/measurement
Zero and Full-Scale Error Correction	Automatic correction
Probe Definition	Programmable arbitrary setting
Probe Card Specification	Standard P48
Equipment Dimension	1430 x 913 x 1747mm
Weight	617Kg
Operating Conditions (Water, Electricity, Gas)	Humidity: <70%; Power supply: AC 220V 2.5kW; Compressed air: <0.6MPa, <40L/min
