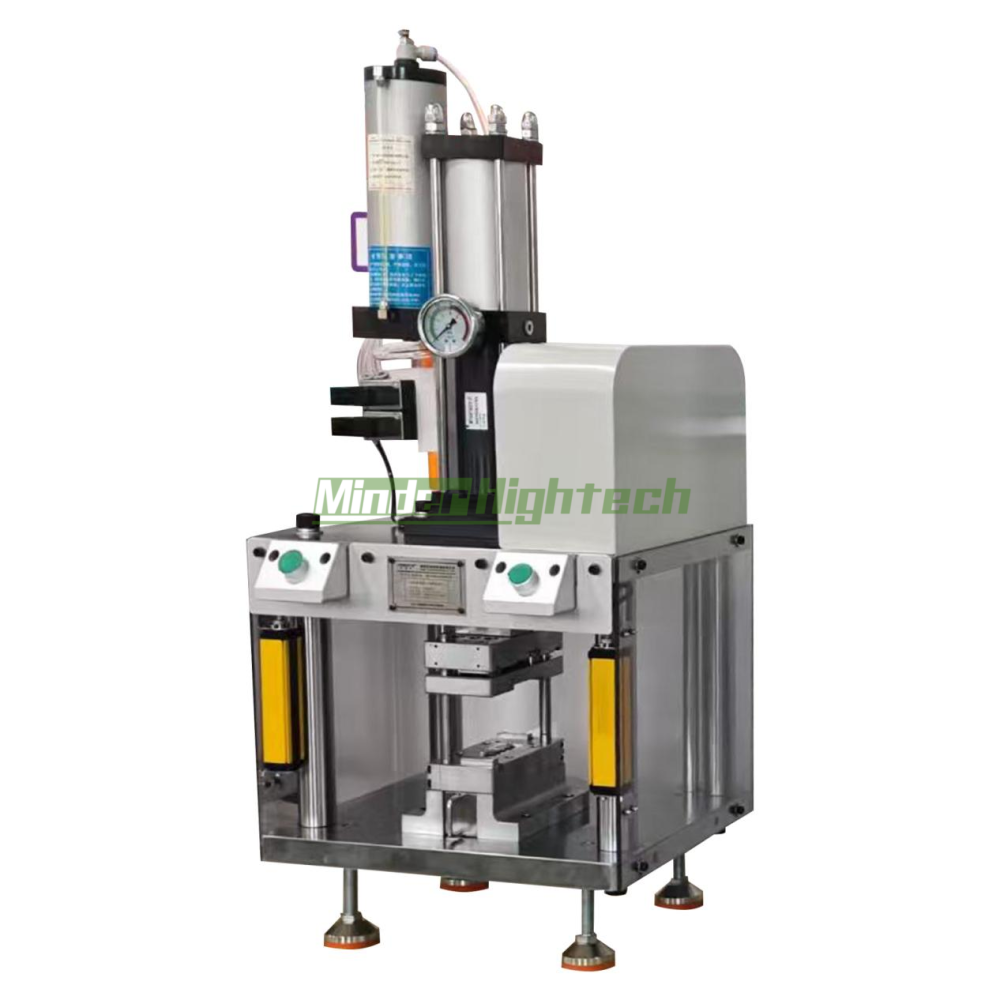

MDHJ-TF8T lead trimming forming machine

2.1 Equipment Structure, Controls, and Button Layout

1. The equipment features a left-right structural layout: the left section houses the operational components, while the right section contains the control systems. The rear of the machine is designed to provide adequate workspace for personnel performing mold changes, and the control cabinet is situated on the right side.

2. The layout of the mechanical mechanisms, component mounting positions, hydraulic line connections, and electrical systems is logically arranged to facilitate convenient commissioning, repair, and routine maintenance.

3. The pneumatic inlet connector located on the side of the machine is a push-to-connect type, designed to be compatible with Φ8 (outer diameter) compressed air tubing and the accompanying air blow gun.

4. The equipment is fitted with a heavy-duty mounting mechanism for suspending the air blow gun.

5. The unit is equipped with a retractable, coiled PU air hose and a high-quality, wear-resistant air blow gun, both connected via quick-release couplings.

6. The guide pillars feature a chrome-plated surface finish, and the mold plates have undergone stress-relief treatment.

7. The pressure gauges and their mounting panels are physically separated from the main machine chassis to ensure ease of repair and maintenance.

8. The equipment comes with its own dedicated status indicator plate.

9. The power supplies for the hydraulic power unit and the pneumatic system are independently controlled to prevent mutual interference during maintenance operations.

10. The hydraulic solenoid valves are capable of manual mechanical override (facilitating maintenance) and are clearly labeled accordingly.

11. The left and right-hand control button panels shall be installed as two separate units.
