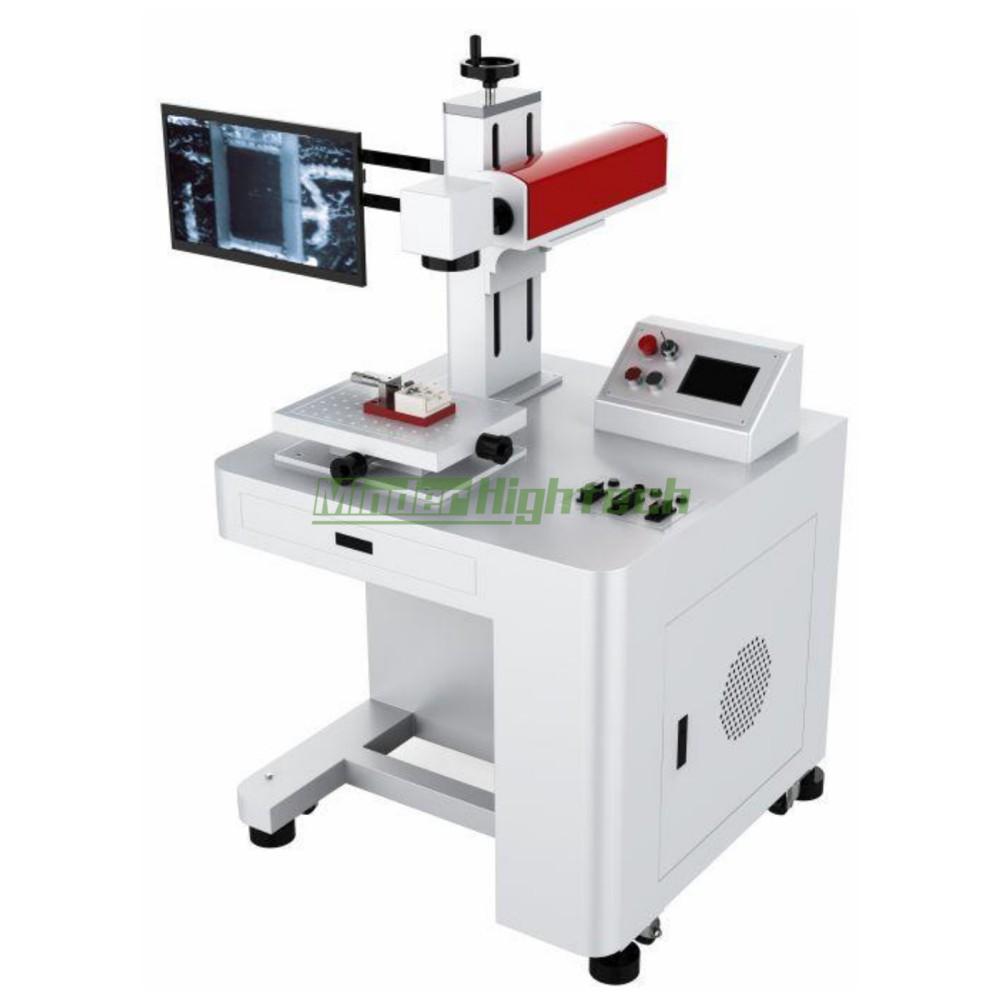

Laser Trimming Machine

Laser trimming machine for Proximity Switch

MDSG-LT75
MDSG-LT75B
Product description: Laser trimming machine
INQUIRY

Equipment Features

1. This device is designed for laser adjustment of universal proximity switch resistors,

2. Equipped with a laser from a leading brand, it meets the processing Requirements for proximity switch resistive materials with high adjustment precision.

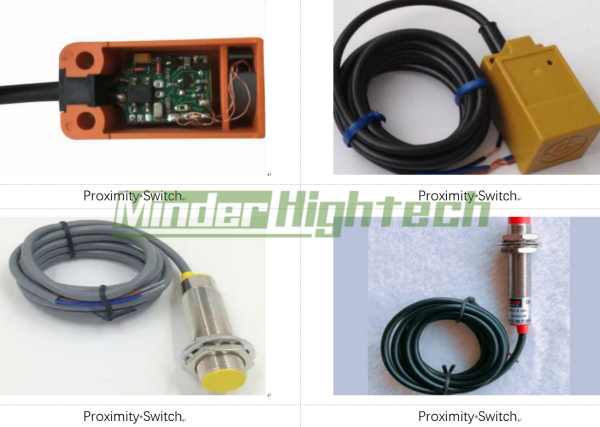

3. Suitable for adjusting various proximity switches including three-wire NPN, PNP, two-wire, AC, and DC types.

4. Unique measurement and control technology ensures a small laser cut, resulting in more stable products after resistance adjustment.

5. Coaxial imaging technology facilitates precise positioning and simplifies Operation, allowing operators to become proficient after minimal training.

Technical Parameters

Model	MDSG-LT75	MDSG-LT75B
Laser wavelength	1064nm	355nm
Laser power	20W	5W
Typical Spot Size	40μm	20μm
Focusing Mode	Manual	Electric
Cooling Method	Air cooling	Water cooling
Laser Beam Movement Range	60mm x 60mm (Optional)
Motion resolution	1μm
Repeat Positioning Accuracy	±5μm
Measurement signal	DC voltage
Resistance Measurement Accuracy	± 0.05%
Voltage Measurement Range	0-50V
Measurement Speed	25 µs/cycle
Measurement Signal Connection	Manual
Loading/Unloading Method	Manual
Positioning Mode	Coaxial imaging
Equipment Dimension	760X760X1480mm
