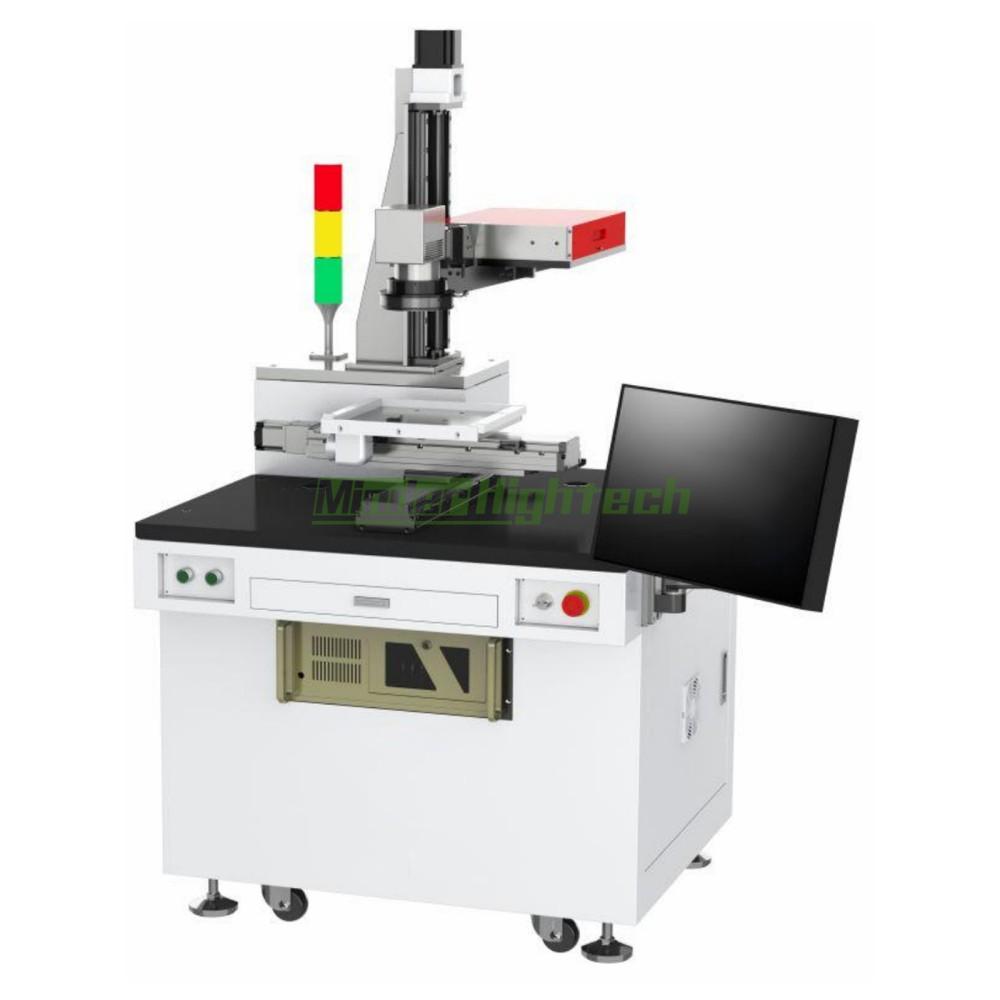

Laser Drilling Machine for Glass

MDSG-LC53
MDSG-LC53L
Product description: Laser Cutting Machine
INQUIRY

Equipment Features

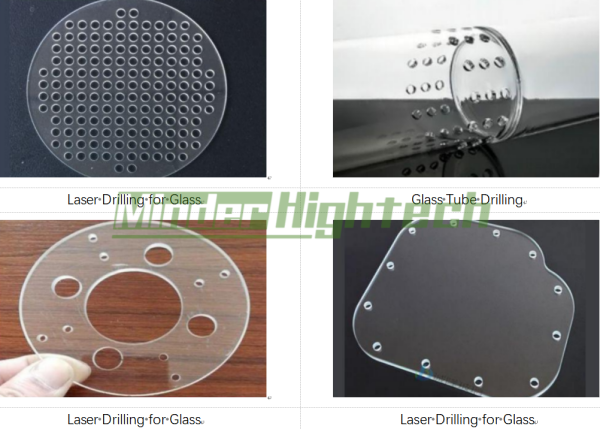

1. This equipment is designed for drilling holes in transparent materials such as ordinary soda-lime glass, flat glass, and electronic glass used in glass pot lids, including mounting holes and vent holes.

2. Utilizing a custom MOP laser coupled with an exclusive beam shaping cutting head, it enables precision drilling on various brittle materials.

3. High Yield Rate: Non-contact penetrating drilling with automatic ejection eliminates mechanical stress, prevents chipping, avoids misalignment, and achieves high positioning accuracy (99.98% yield rate).

4. High Efficiency: Single-hole completion time of 2-3 seconds, overall cycle rate of 600-720 pieces per hour.

5. High adaptability: Accommodates multiple hole diameter specifications (1-50 mm) and meets special hole shape requirements (round, oval, square, irregular).

6. Excellent stability: Ensures stable, uninterrupted operation during long-term continuous 8×24-hour shifts. High reliability with Mean Time Between Failures (MTBF) of 8,000 hours and Mean Time to Repair (MTTR) of 0.5 hours.

Technical Parameters

Model	MDSG-LC53	MDSG-LC53L
Laser	Customized MOP Laser	Customized Green Laser
Laser wavelength	1064nm	532nm
Average output power	120W/200W	60W/100W
Cooling method	Water cooling	Water cooling
Worktable stroke	300mm x 300mm (Customizable)
Worktable accuracy	Positioning accuracy: ±0.02µm;
Control software	Dedicated Glass Laser Drilling Software
Drilling accuracy	<0.1mm	<0.1mm
Drilling speed	60mm/s @ 1mm thick white glass
Edge chipping	<250μm	<100μm
Equipment dimension	900 x1100 x 1650mm	900 x1100 x 1650mm
Machine weight	500Kg	500Kg
Power supply	220V/50Hz	220V/50Hz
