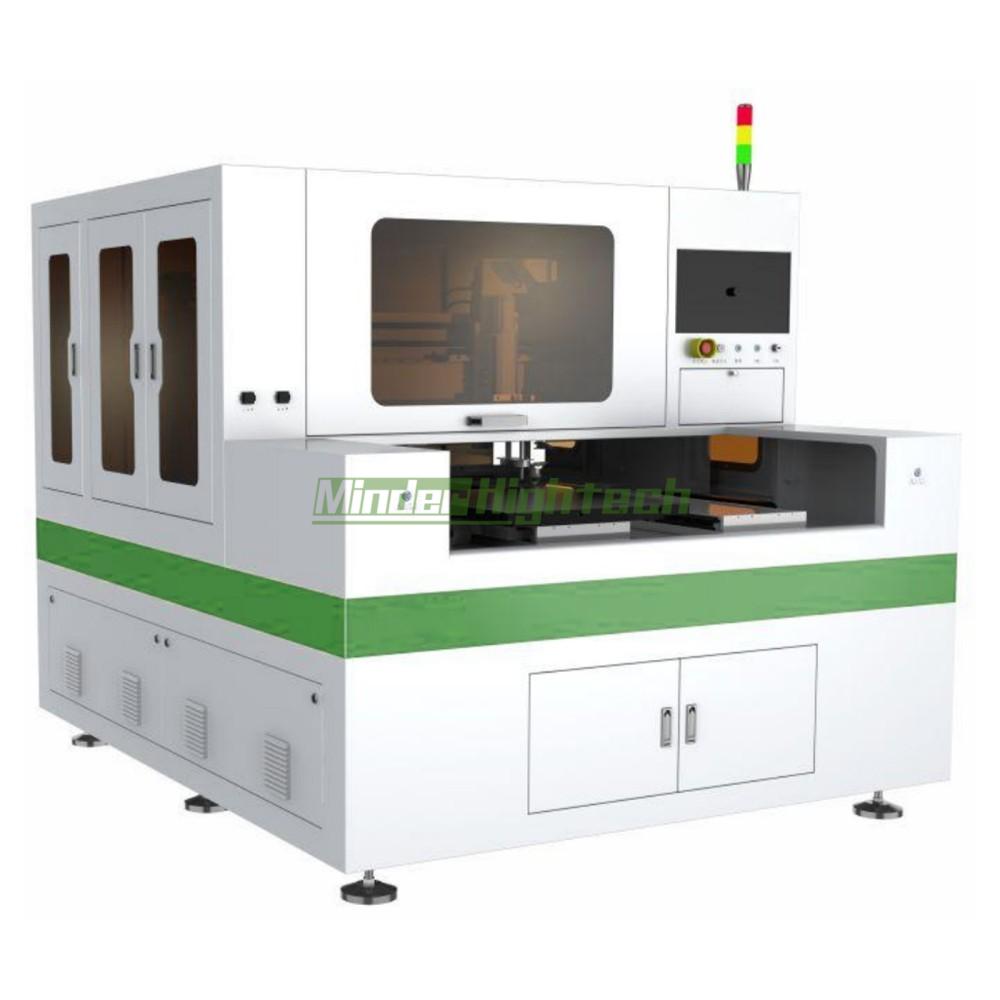

Laser Cutting and Splitting Integrated Machine for Glass

MDSG-LC51
MDSG-LC51S
Product description: Laser Cutting Machine
INQUIRY

Equipment Features

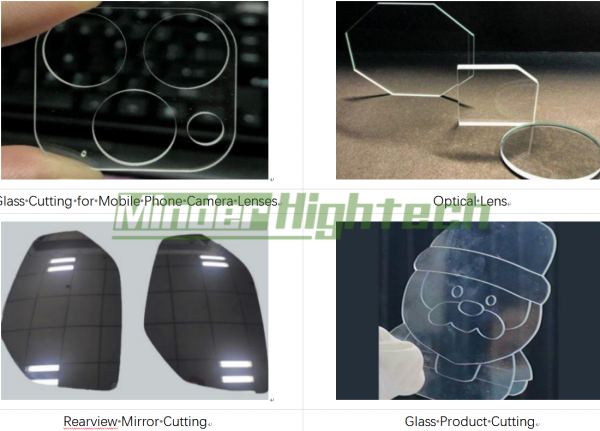

1. This equipment is designed for cutting transparent materials such as tempered and non-tempered glass, sapphire glass, and optical glass.

2. Utilizing a custom ultra-fast picosecond laser paired with an exclusive beam-shaping cutting head, it enables precision cutting and cracking of various brittle materials.

3. Features high cutting accuracy, zero taper, minimal heat-affected zone, no gaps during cutting, and edges free of debris, burrs, or residue.

4. Enhanced Efficiency: Maximum cutting speed exceeds 600 mm/s, delivering processing efficiency several times higher than CNC systems.

5. Eliminates Secondary Processing: Minimal edge chipping requires no secondary operations like washing, grinding, or polishing.

6. Superior Edge Strength: Picosecond laser technology achieves three times the edge strength of traditional cutting methods.

7. Configuration options: single/dual station available, processing format customizable

Technical Parameters

Model		MDSG-LC51	MDSG-LC51S
Picosecond cutting	Laser wavelength	1064nm
	Laser power	60W (Optional: 30W/50W/80W)
	Pulse length	<10PS
CO2 scribing	Laser wavelength	10640nm
	Laser power	150W (250W/350W optional)
	Pulse length	Pulse frequency: 1Hz-100kHz
Table Travel		Single-station (0.6 x 0.6 m)	Dual-station (0.65 x 0.95 m)
X/Y Repeated Positioning Accuracy		≤ ±1µm	≤ ±1µm
Z-axis travel		100mm	100mm
Z-axis positioning accuracy		±1µm	±1µm
CCD camera		5 megapixels	5 megapixels
Light Source		Adjustable-brightness annular light source
Positioning Mode		Automatic alignment with Mark recognition
Cutting speed		0-500mm/s Adjustable	0-500mm/s Adjustable
Cutting Thickness		≤20μm	≤20μm
Minimum Cutting Chipping		<5μm	<5μm
Scribing Speed		0-300mm/s Adjustable	0-300mm/s Adjustable
Machine Dimension		2100mm2080mm1960mm (excluding laminated lights)
Machine Weight		Approximately 3500KG	Approximately 3500KG
Operating Conditions (Water, Electricity, Gas)		Humidity: 10-70% (non-condensation principle); Clean environment; Power supply: AC220V±5%, L+N+E, <8KW; Ambient temperature: 18-28°C
