Seal welding solution

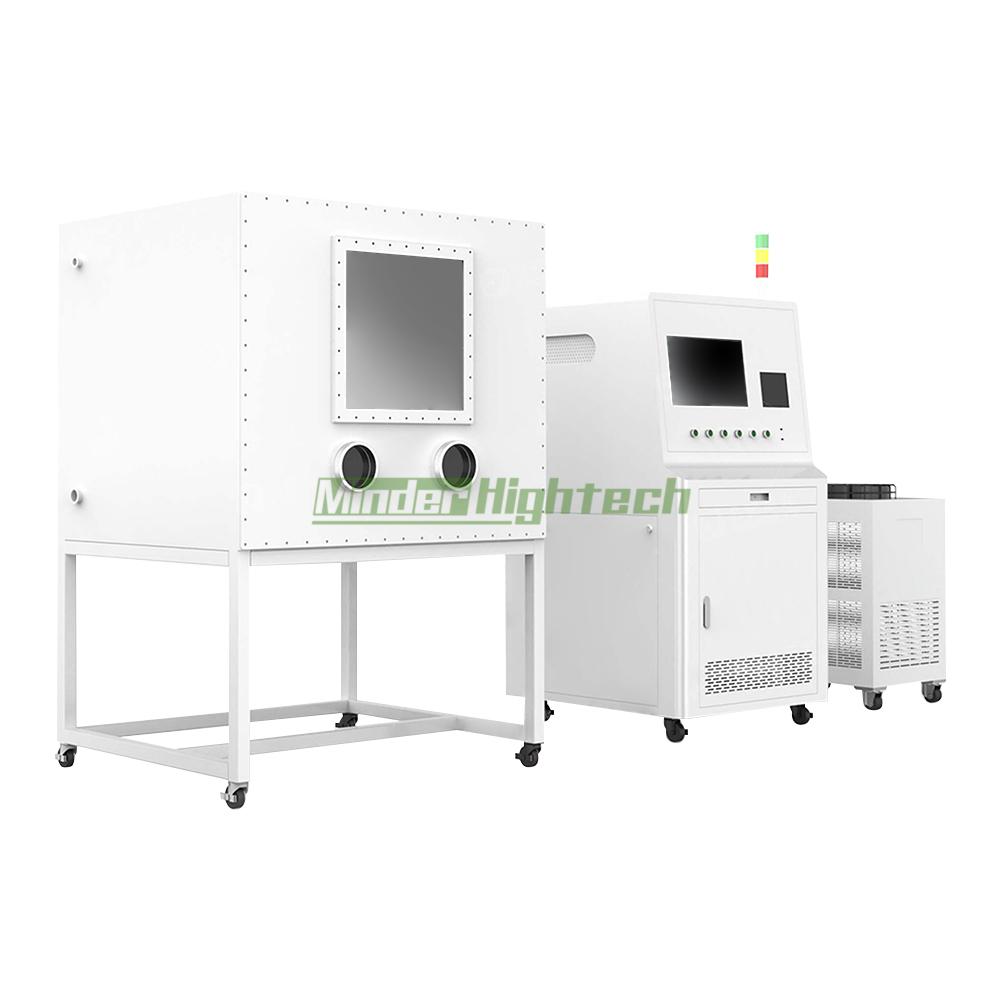

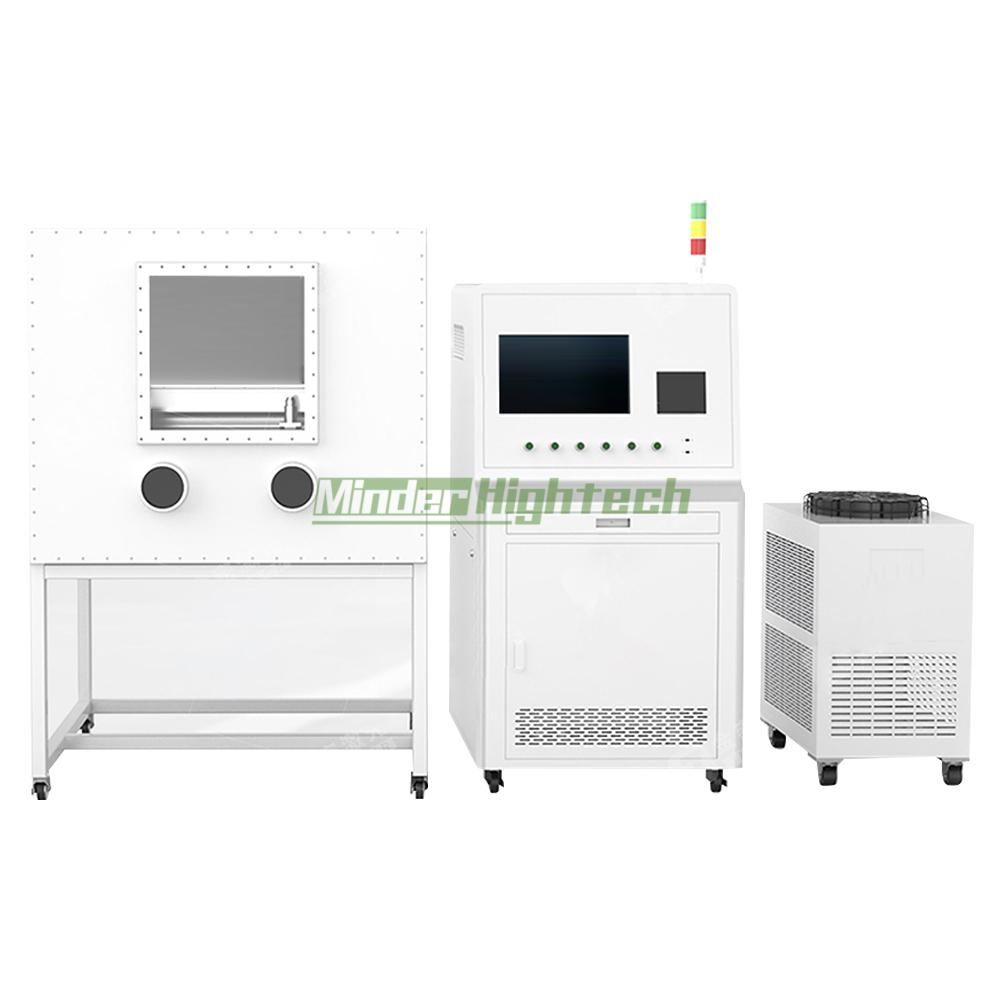

Laser seam sealing welder with simple air chamber

MDJM-LSW200S
Product description: Laser seam welder
INQUIRY

Equipment Introduction

Laser welding equipment equipped with a closed chamber can be filled with inert gas to provide a better welding environment than air blowing protection, greatly reducing the impact of weld oxidation on the sealing welding effect and effectively avoiding the generation of cracks and pores.

It has a coaxial visual observation function, which can realize the visualization of the processing area and the two-dimensional morphology of the molten pool during the processing. The software and hardware systems have good openness and operability, which is convenient for upgrading and expansion of new functions.

Features

1. Inert Gas Protection

2. Customized Equipment

3. Ultra-clean Environment

4. Process Monitoring

1. Inject inert gas to improve welding effect and protect electronic components

2. Customized equipment based on different materials and products

3. Scope Of Ultra Clean Working Environment

4. Equipped with CCD monitoring real-time monitoring of the welding process

Equipment Parameters

Airtight Chamber
Box Size	1000 (L) * 1000 (W) * 900 (H) mm, customizable
Gloves	Imported butyl gloves
Filter	Outlet and inlet filters, filtering <0.3µm
Lighting	LED lighting on top of front window
Window	Panel 12mm thick safety tempered glass, customizable
Box Leakage Rate	<0.001 vol%/h
Air Pressure	Automatic control, air pressure can be set
Box Material	304 stainless steel, thickness 5mm
Transition Warehouse	Can be equipped with large and small transition warehouses

Laser System
Laser	Continuous fiber laser, QCW laser, YAG laser, semiconductor laser, etc
Welding Trajectory Setting	CNC programming or teaching
Laser Power	200W-3000W
Laser Welding Head Angle Adjustment	rotation ±45°
Maximum Welding Speed	80mm/s
CCD Weld Monitoring	Magnify 20 times to observe product quality
Cooling Method	Water cooling, air cooling
Welding Head	Non-swing, single-swing, double-swing, galvanometer and other welding heads
Blowing Method	Coaxial, side-axis blowing, or in-box atmosphere protection

Control System And Others
Control Mode	PC+PLC control, equipped with 17-inch LCD display
Wire Feeding	Automatic wire feeding
X, Y, Z Axis Travel	400200300MM (customizable), repeat positioning accuracy ±0.02mm, electric
W-axis Travel	Clamping diameter 10mm-80mm (customizable), infinite rotation, electric
Dust Removal	Independent exhaust dust removal system
Fixture	Tooling, etc. can be customized
Expansion Space	Can expand 5-axis linkage system, multi-station processing system, etc
Applicable Environment	Suitable for clean rooms of 10,000 to 1 million levels, conventional workshops and laboratories
