Laser Seam Welder

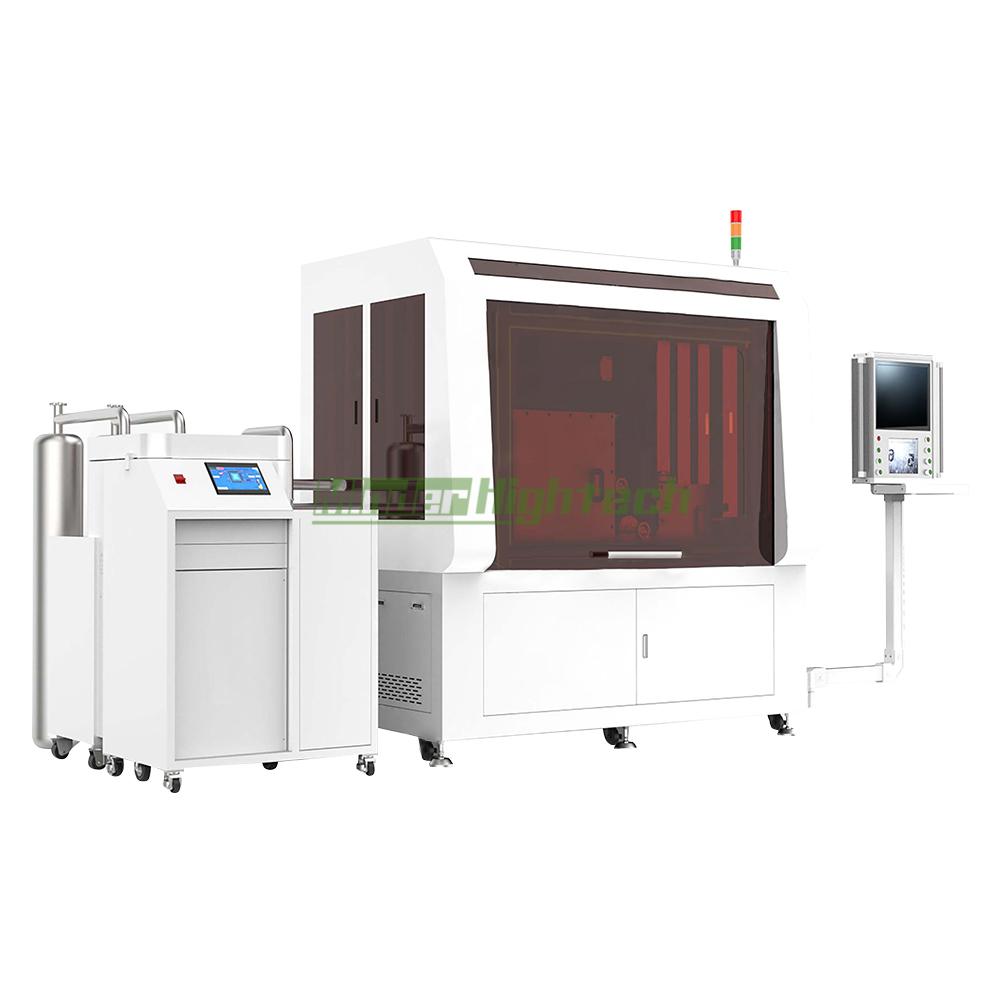

Vacuum Laser Sealing Welder

MDJM-VLSW300Y
Product description: Vacuum Laser Sealing Welder
INQUIRY

Equipment Introduction

Laser welding can be performed in an ultra-high vacuum environment. Laser welding in a vacuum environment can significantly increase the penetration depth and reduce defects such as pores. At the same time, it can meet the key applications that require vacuum inside the packaging cavity and complete the activation task of products with getters.

Compared with other vacuum Sealing welding methods, vacuum laser welding technology avoids the damage of high temperature to electronic components, and the welding is fast and efficient. It has huge advantages in the assembly of microelectronic devices, medical device manufacturing and precision component production.

Features

1. Ultra-high Vacuum

2. Customized Equipment

3. Getter Activation

4. Process Monitoring

Equipment Parameters

Vacuum Box
Vacuum Box Size	customizable
Vacuum Degree	<10-6 Pa
Box Material	304 stainless steel, thickness 20mm (customizable)
Pump Body	Mechanical pump + molecular pump + ion pump
Box Leakage Rate	<0.001 vol%/h
Cooling Method	Water cooling
Lighting	LED lighting on top of front window
Heating Temperature	Room temperature---200 degrees Celsius, control accuracy, ±2 degrees Celsius

Laser System
Laser	Continuous fiber laser, QCW laser, YAG laser, semiconductor laser, etc
Welding Trajectory Setting	CNC programming or teaching
Laser Power	200W-3000W
Laser Welding Head Angle Adjustment	Rotation ±45°
Maximum Welding Speed	80mm/s
CCD Welding Seam Monitoring	20 times magnification observation
Cooling Method	Water cooling, air cooling
Welding Head	Non-swing, single-swing, double-swing, galvanometer, etc
Blowing Method	Coaxial, side-axis blowing, or in-box atmosphere protection

Control System And Others
Control Mode	PC+PLC control, equipped with 17-inch LCD display
Tooling	Tooling fixtures can be customized
X, Y, Z Axis Travel	400200300MM (customizable), repeat positioning accuracy ±0.02mm, electric
W-axis Tavel	Clamping diameter 10mm-80mm (clamping range can be customized), infinite rotation, electric
Dust Removal	Independent exhaust dust removal system outside the box
Expansion Space	Can expand 5-axis linkage system, multi-station processing system, etc
Applicable Environment	Applicable to clean rooms of 10,000 to 1 million levels, conventional workshops and laboratories
