Seal welding solution

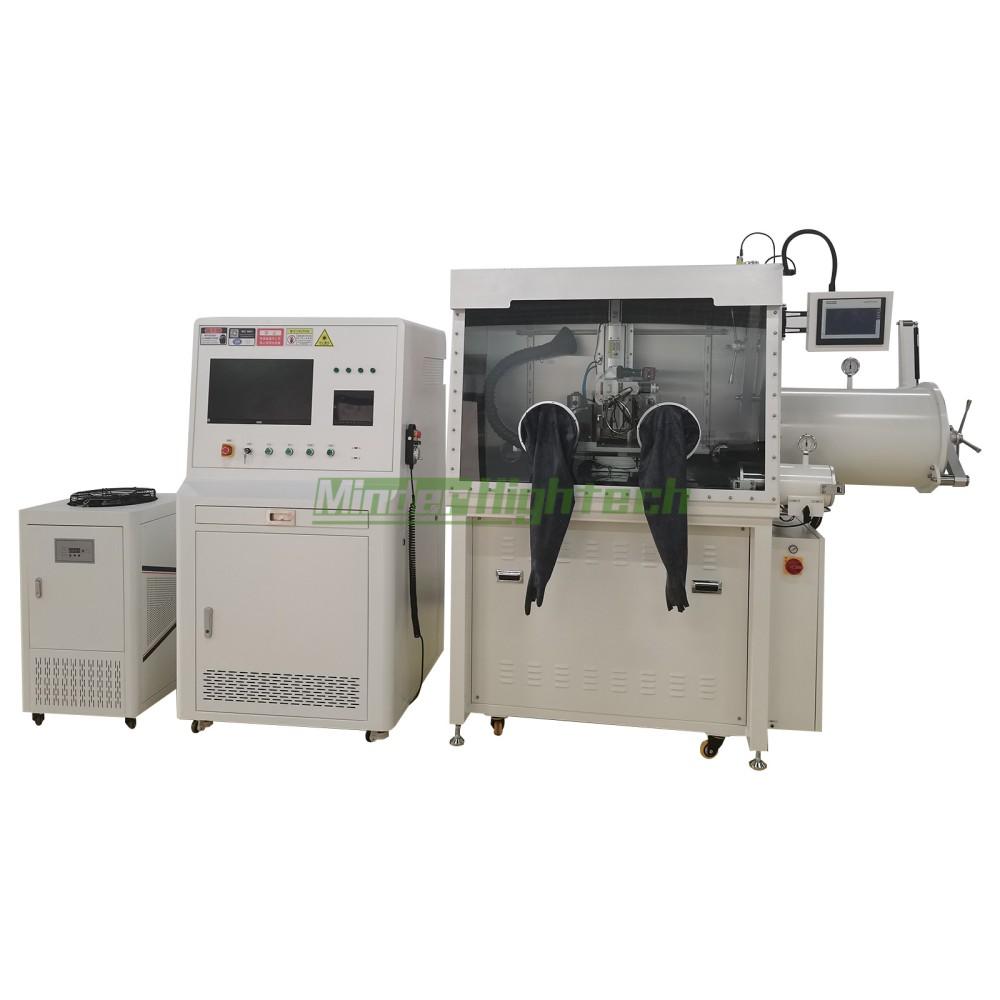

Laser seam Laser seam sealing welder with simple air chamberwelder with glove box two glove type

MDJM-LSW300Y
Product description: Laser seam welder
INQUIRY

Equipment Introduction

The glove box is a high-performance, high-quality closed-loop working system that automatically absorbs water and oxygen molecules and purifies the working environment, providing an inert atmosphere that can meet the water and oxygen content environment H2O&O2 < 1PPM

Laser welding of metal materials in harsh environments or critical applications with strict Sealing requirements can be completed. The sealing effect is more reliable and durable than epoxy resin, mechanical seals, etc., and the oxygen and moisture content in the weld can be controlled to ensure that the components are not affected by oxidative pollutants from beginning to end.

Features

1. Inert Gas Protection

2. Ultra-clean Environment

3. Water Oxygen Control

4. Customized Equipment

Equipment Parameters

Glove Box
Box Size	1200 (L) * 750 (W) * 900 (H) mm, customizable
In-box Filter	HEPA-compliant high-efficiency filter
Box Material	304 stainless steel, thickness 5mm
Transition Warehouse	large and small transition warehouse
Window	Removable glass front window with laser protection film
Heating	The transition chamber can be evacuated and heated, with a temperature of up to 200 degrees Celsius
Gloves	Holes can be customized
Glove Box Water And Oxygen Content	<1ppm
Box Leakage Rate	<0.001 vol%/h
Lighting	LED lighting on top of front window
Control Accuracy	±2 degrees Celsius

Laser System
Laser	Continuous fiber laser, QCW laser, YAG laser, semiconductor laser, etc
Welding Trajectory Setting	CNC programming or teaching
Laser Power	200W--3000W
Laser Welding Head Angle Adjustment	Rotation ±45°
Maximum Welding Speed	80mm/s
CCD Weld Monitoring	Magnify 20 times to observe the weld
Cooling Method	Water cooling, air cooling
Welding Head	Non-swing, single-swing, double-swing, galvanometer, etc
Blowing Method	Coaxial, side-axis blowing, or in-box atmosphere protection

Control System And Others
Control Mode	PC+PLC control, equipped with 17-inch LCD display
Wire Feeding	Automatic wire feeding
X, Y, Z Axis Travel	400200300MM (customizable), repeat positioning accuracy ±0.02mm, electric
W-axis Travel	Clamping diameter 10mm-80mm, infinite rotation, electric
Dust Removal	Independent exhaust dust removal system
Fixture	Customized tooling and other fixtures
Expansion Space	Can expand 5-axis linkage system, multi-station processing system, etc
Applicable Environment	Applicable to clean rooms of 10,000 to 1 million levels, conventional workshops and laboratories
