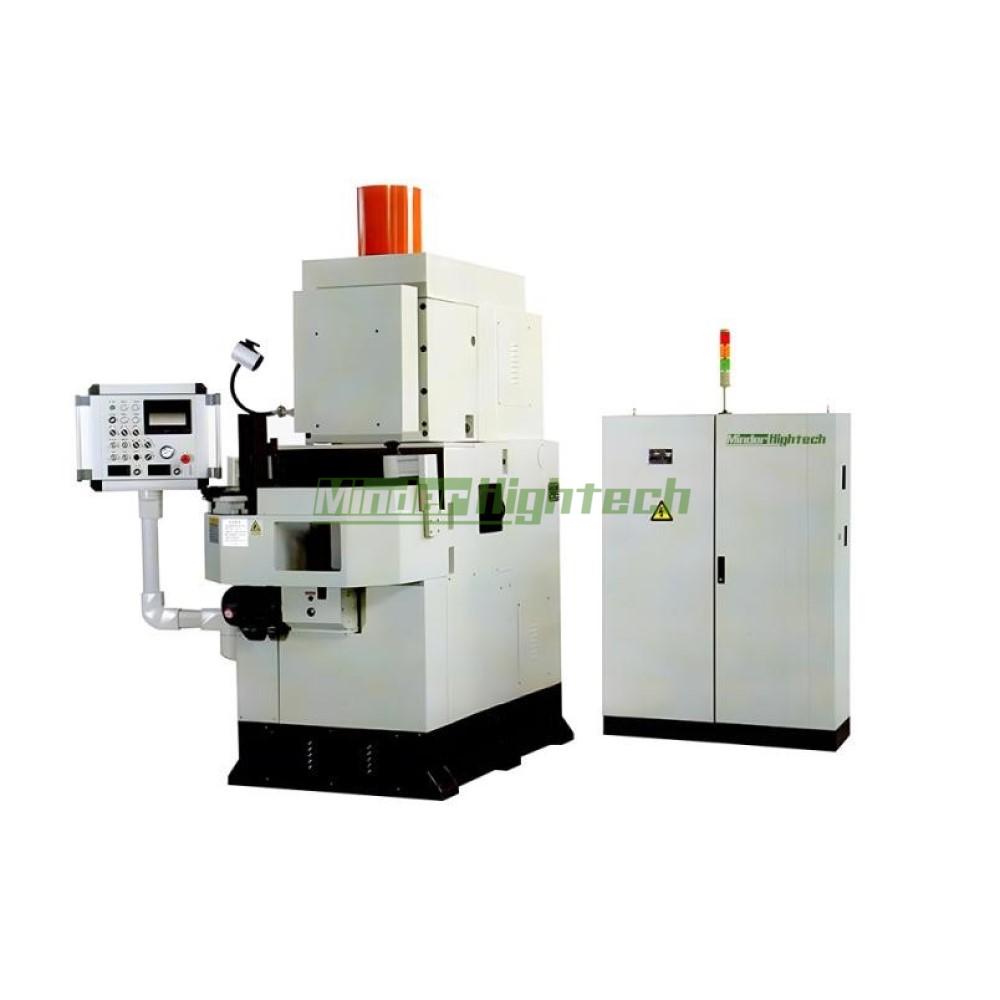

VERTICAL CNC ROTARY TYPE DOUBLE END FACE GRINDER

MKY7760
产品描述：DOUBLE END FACE GRINDER
在线订购

1. This machine tool is mainly used for grinding both end faces of various plate-type circular and special-shaped workpieces (bearings, piston rings, oil pump rotors, gears, etc.), especially for grinding both end faces of thin plate-type workpieces (air conditioning valve plates, brake discs, blades, auto parts, mobile phone aluminum plates, watch copper plates, etc.).

2. The machine tool adopts disc feeding and processes the workpiece by continuous grinding.

The machine tool guide rail adopts high-precision cross roller linear guide rail with good rigidity, high repeat positioning accuracy and long service life.

3. The grinding head advance and retreat, feeding, and automatic dressing of the grinding wheel are all controlled by electrical and hydraulic control.

4. The machine tool adopts HMI human-machine interface to make the control more intuitive and accurate.

5. Machine tool working accuracy: (taking bearing ring as an example)

Dimension difference <0.015mm

Parallel difference <0.005mm

Surface roughness Ra≤0.32μm

End face runout <0.01mm

(The main technical parameter)

Item	Unit	Parameter
Diameter of work piece	mm	Φ10-Φ150
Thickness of work piece	mm	0.9-40
Size of the grinding wheel(outside diameter×inside diameter× thickness)	mm	600×250 (205)×63
Speed of main spindle of grinding head	r/min	0-890
Movement travel of grinding head	mm	120
Diameter of the feeding disk	mm	820
Feeding dpeed	r/min	1-10
Total power of motor	Kw	18.5×2
Total power of motor	Kw	41
Overall dimensions of the machine(L×W×H)	mm	2200×1550×2550
Weight of the machine	Kg	7000
