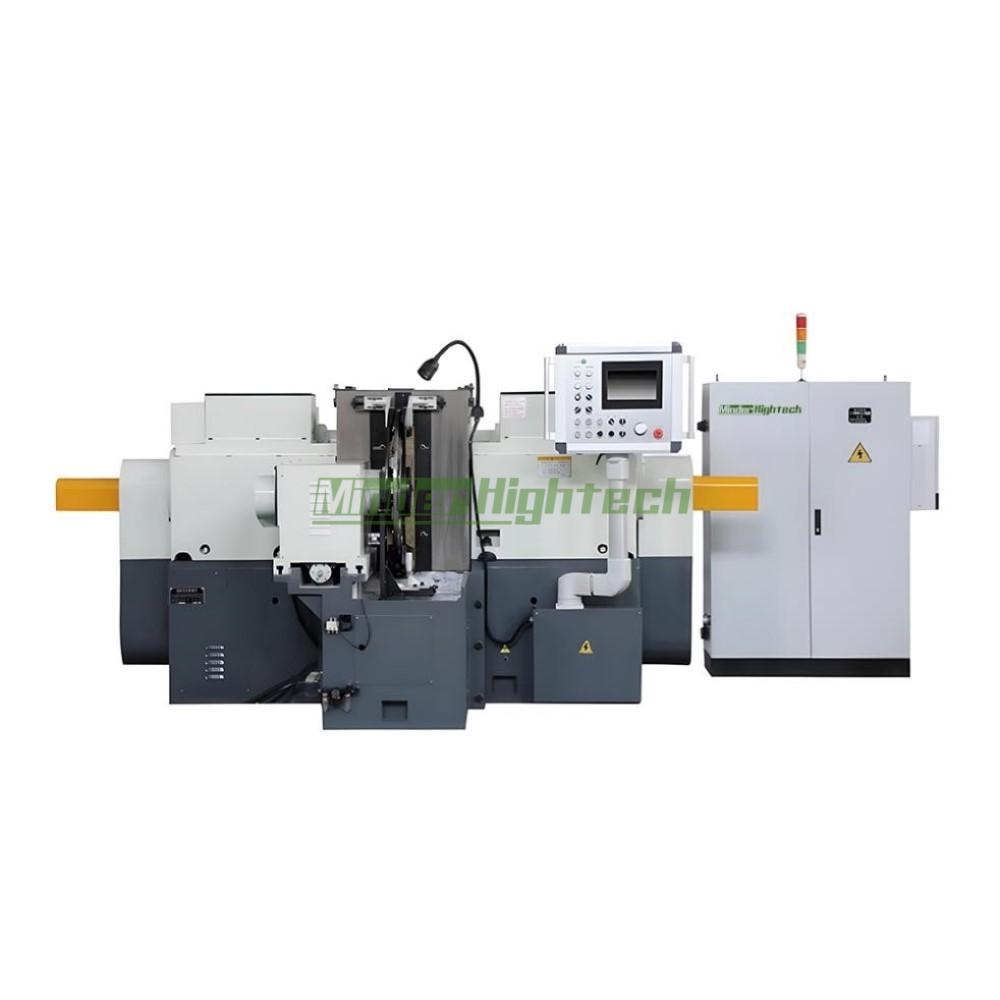

NC HORIZONTAL SPINDIE DOUBLE END FACE GRINDER

MKY7650
MKY7660
产品描述：DOUBLE END FACE GRINDER
在线订购

1. This machine tool is mainly used for grinding the two end faces of tapered and cylindrical rollers and small bearing inner sleeves, needle bearing inner sleeves, and linear bearings.

2. The machine tool adopts a disc feeding method, and the feeding speed is adjusted by an AC frequency converter to achieve stepless speed change of the feeding speed.

3. The machine tool adopts the HM manual interface to make the control more intuitive and accurate.

4. The machine tool guide rail adopts a cross roller linear guide rail, which has good contact rigidity and is easy to maintain.

5. The feeding of the machine tool grinding wheel adopts a PLC servo control system to ensure that the minimum feeding value of the grinding wheel is 0.001mm.

6. Machine tool working accuracy: (taking the bearing ring as an example)

Dimension difference: <0.01mm

Parallel difference: <0.002mm

Surface roughness: Ra≤0.32μm

(The main technical parameter)

Item	Unit	Parameter
Item	Unit	MKY7650	MKY7660
Diameter of work piece	mm	Φ3-Φ60	Φ5-Φ80
Thickness of work piece	mm	5-60	5-80
Dimensions of grinding wheel(outer dia×inner dia×thckness)	mm	500×305×63	600×305×63
Speed of main spindle of grinding head	r/min	1025	890
Diameter of the feeding disk	mm	Φ650(groove)Φ700(bushing)	Φ700(groove)Φ750(bushing)
Rotating speed of the feeding disk	r/min	0.5-7.5	0.5-7.5
Total power of motor	Kw	11×2	11×2
Overall dimensions of the machine (LxW×H)	mm	2965×2155×1700	3350×2600×1780
Weight of the machine	Kg	5000	8000
