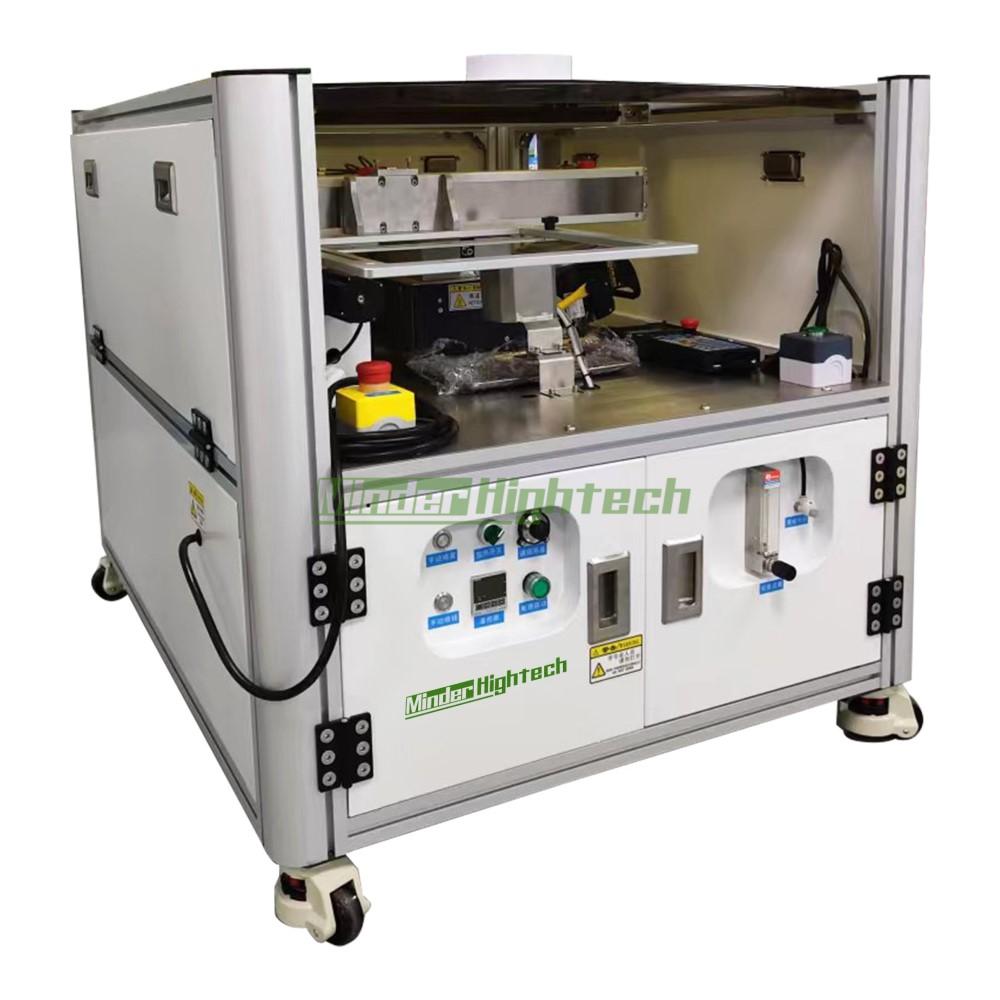

MDCWS-350 Selective wave soldering machine

设备特点
■ 选择型喷助焊剂：用户根据PCB结构，编辑程序，规划助焊剂喷涂的X-Y运动路径。
Selective spray flux: according to the PCB structure, the user can edit the program to plan the X-Y movement path of the spray flux.
优点：各焊盘助焊剂量可控，同时节约助焊剂、减少过量助焊剂对板的污染，节省工艺时间。

Advantages: the flux of each pad is controllable, saving flux at the same time, reducing excessive flux pollution to the plate, saving process time.

选择型波峰焊接：按照用户的程序路径X-Y-(Z)，选择性地对PCB进行焊接.
Selective wave soldering: Selectively soldering the PCB according to the user's program path X-Y-(Z).
优点：各焊点焊锡时间、喷锡高度、脱锡方向独立可调。
Advantages: soldering time, spray height and desoldering direction can be adjusted independently.

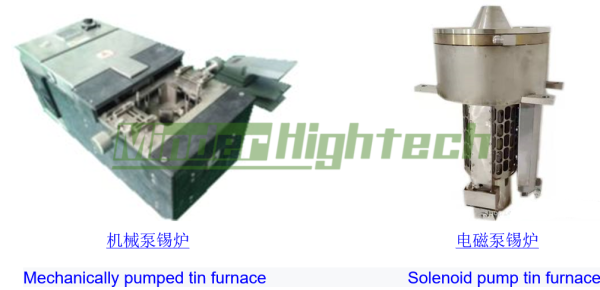

锡炉：专利方形喷嘴设计，炉胆防腐处理；高温电机驱动，全封闭叶轮，低矮设计；可选电磁泵锡炉。
Tin furnace: patent square nozzle design, furnace bladder anti-corrosion treatment;High temperature motor drive, fully enclosed impeller, low design;Electromagnetic pump tin stove is optional.
优点：效率高于传统选择焊200%，锡容量16/25KG，熔锡时间40分钟，单班氧化量0.2KG。
Advantages: efficiency is higher than the traditional selection welding 200%, tin capacity 16/25kg, tin melting time 40 minutes, single shift oxidation 0.2KG.

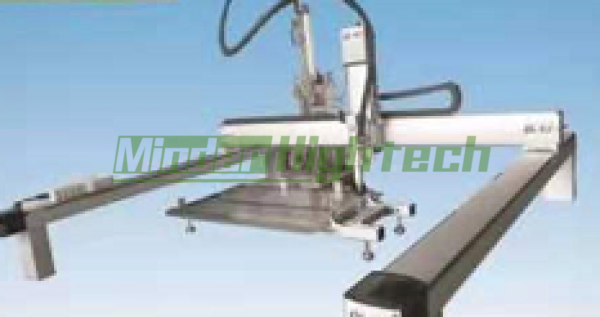

机械手+运动控制：PCB相对锡炉的运动，采用X-Y-(Z)直角机械手，伺服/步进马达驱动；滚珠丝杆+直线导轨方式；运动控制卡，路径和加减速度控制。
Manipulator + motion control: the movement of PCB relative to tin stove adopts X-Y-(Z) right-angle manipulator, servo/stepper motor drive;Ball screw + linear guide way;Motion control card, path and add/subtract speed control.
优点：运动精度±0.02mm，平稳可靠，长期稳定。
Advantages: motion accuracy ±0.02mm, stable and reliable, long-term stability.

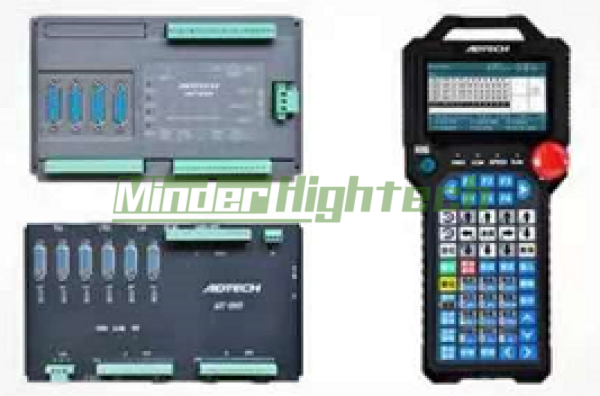

编程器：可灵活进行程序的复制、编辑、保存；喷助焊剂和焊锡共用同一程序。
Programmer: can be flexible to copy, edit and save the program，Flux spray and solder use the same procedure.
优点：系统可存储1000组用户程序，编写一个新程序1分钟可完成。
Advantages: the system can store 1000 groups of user programs, write a new program can be completed in 1 minutes.

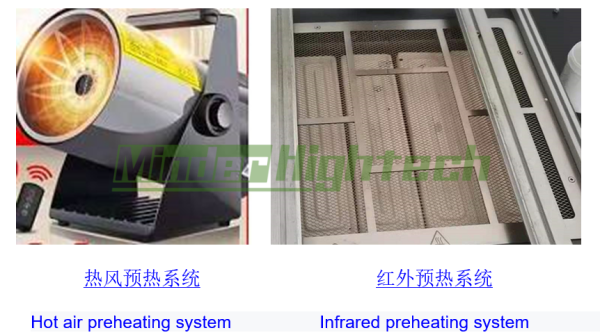

预热：预热温度、预热时间、预热路径程序可调，用户可灵活运用红外+热风预热工艺；
Preheating: Preheating temperature, preheating time, preheating path program can be adjusted, users can flexibly use infrared + hot air preheating process;
优点：节能高效，工艺数字化。
Advantages: energy saving and high efficiency, digitized process.

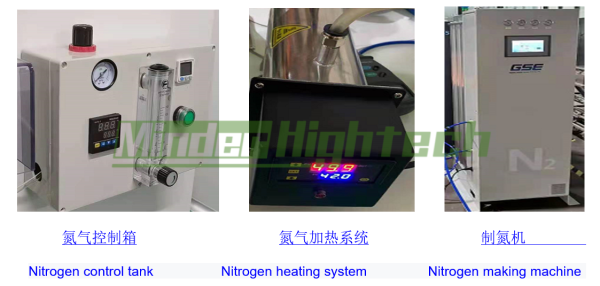

氮气系统：配氮气压力调整、流量控制、提前加热、氮气帽。（选项）
Nitrogen system: with nitrogen pressure adjustment, flow control, advance heating, nitrogen cap.(option)
优点：氮气提高了液态锡的润湿和流动性；提前加热，避免了水汽引起的锡珠；氮气也减少了锡氧化量。
Advantages: Nitrogen improves the wetting and fluidity of liquid tin;Heating in advance, avoiding the tin beads caused by water vapor;Nitrogen also reduces tin oxidation.

设备操作：单人（或机器人）取放板操作。
Equipment operation: single person (or robot) to take and put the board operation.
优点：可人机协同，机器在焊板同时，人员可同时插件、检查修补、从夹具中取放板。
Advantages: man-machine cooperation, machine welding plate at the same time, personnel can plug in at the same time, check and repair, take and put the plate from the fixture.
