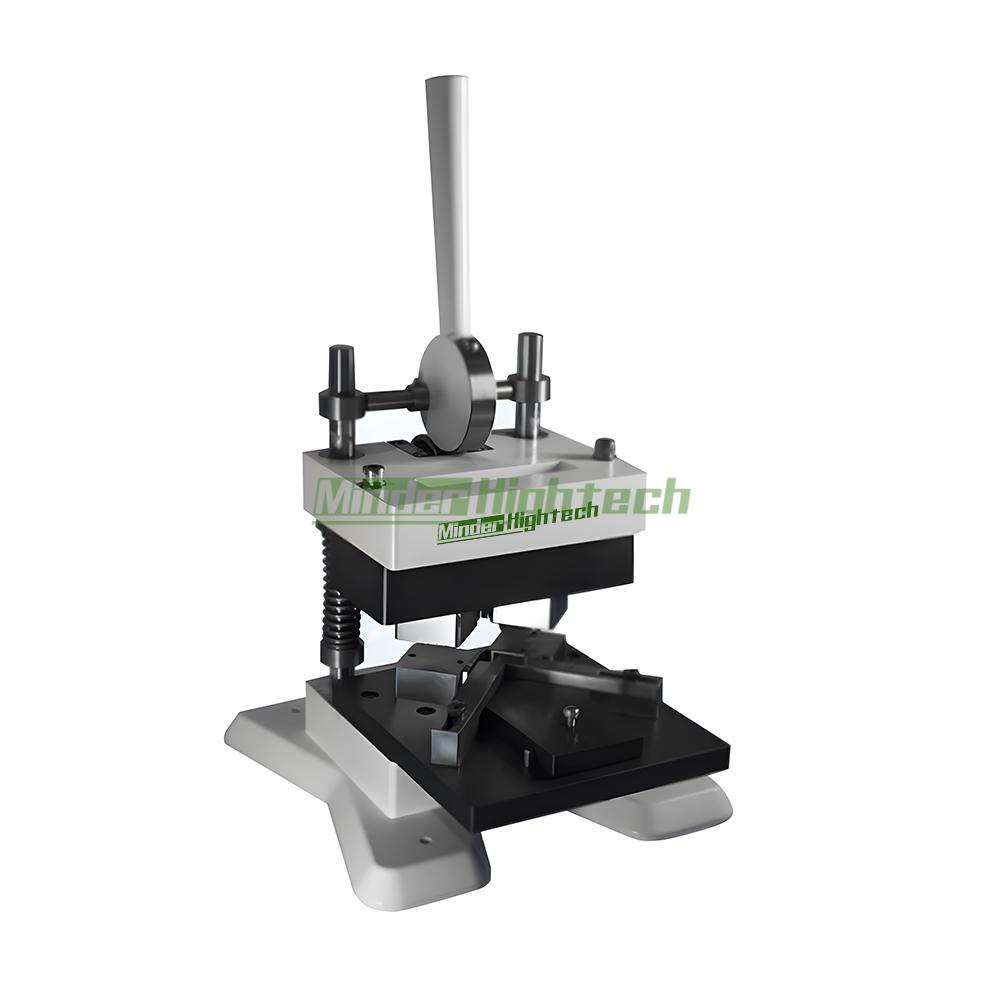

Lead Frame Cutter
Introduction: Remove the ceramic lead frame of component. Put the component into the positioning fixture and press the handle to remove the ceramic frame safely without any deformation and damage.
Technical Parameters
|
Dimension |
L*W*H:280*260*430mm |
|
Body size |
5-64mm |
|
Cutting width ( Distance between body and frame ) |
5-60mm |
|
Frame thickness |
0.3-2mm |
|
Frame cut width |
1-10mm |

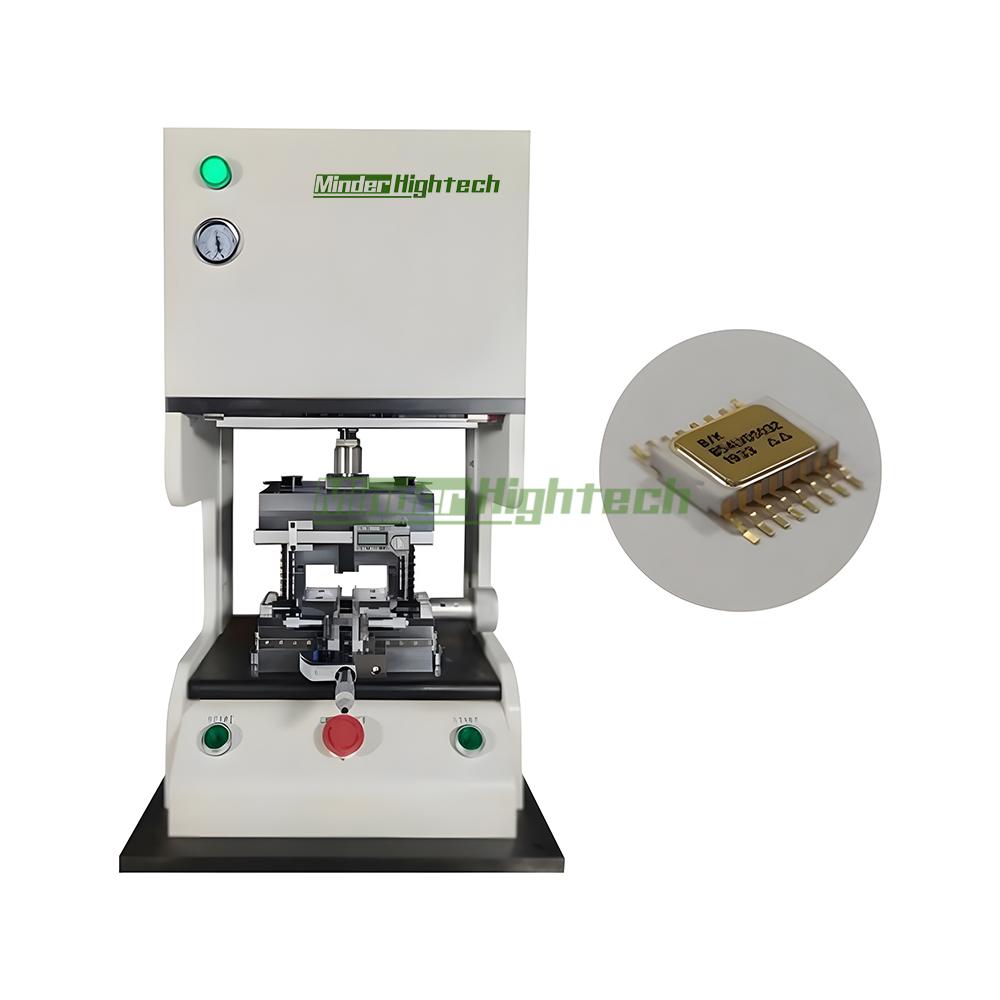

Lead Cutting Machine
Introduction:The lead cutting machine adopts pneumatic die press and high precision digital micrometer with high cutting accuracy. It can cut different lengths of lead to meet a variety of different needs.
Technical Parameters
>Dimension (L*W*H):590mm*570mm*950mm
>Weight: 150KG
>Chip body size : 5*5mm-50*50mm
>Lead thickness :0.10mm-0.30mm
>Lead length :0.8mm-5mm
>Shear burr : ≤0.05mm
> lead repeat accuracy : +0.01mm
