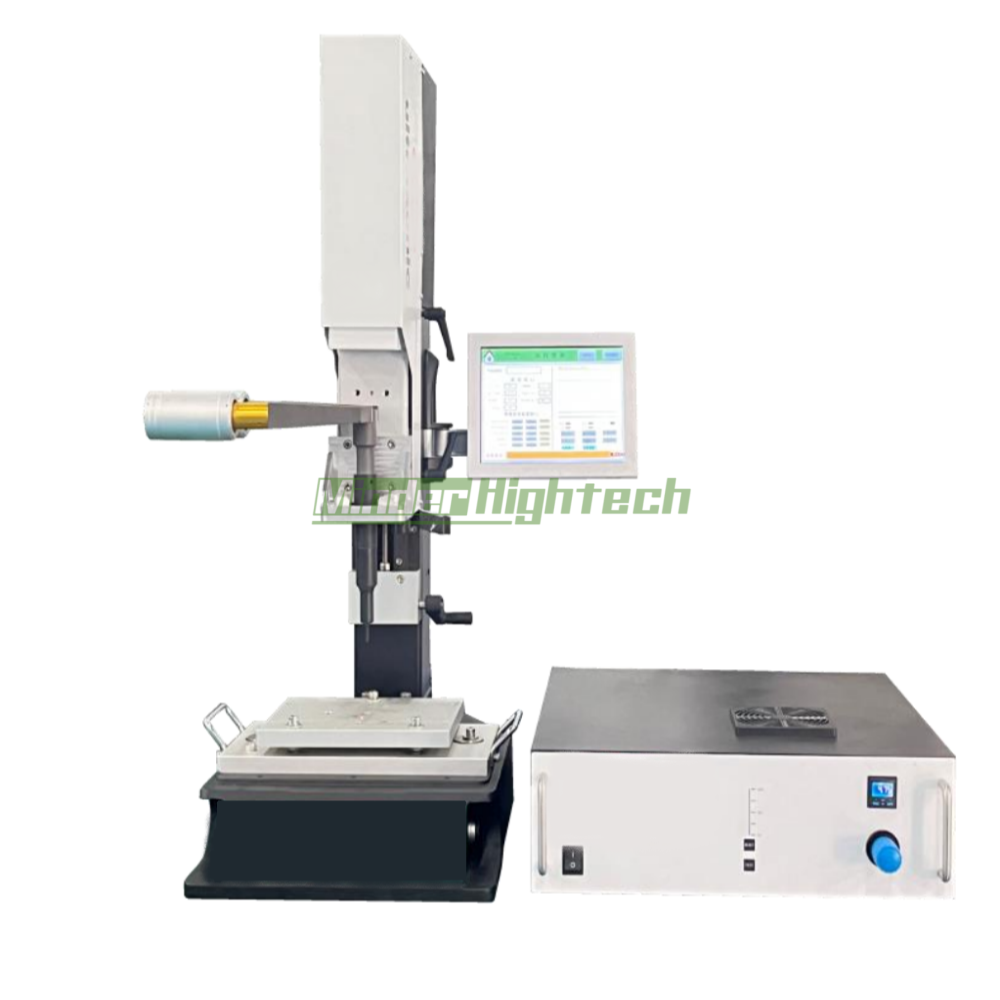

1 、MDTN-NJ750 Description：
The ultrasonic generator and driver are designed as separate modules, connected by imported high- frequency cable plugs for quick plugging.
This can effectively protect the electronic components inside the ultrasonic generator. In addition, you can place the ultrasonic generator and electrical box in the most convenient location according to the actual production site environment.
Features:
German engineers meticulously design and manufacture with precision.
The driver has a compact size and can be flexibly applied in the narrow space of automated welding lines.
The overall use of American aluminum 7075 high-strength aluminum alloy material.
The Festo cylinder from Germany is durable and has an output pressure of 750N.
SMC pressure proportional valve press lowering and welding pressure segmentation technology. THK precision linear double rail slider from Japan runs smoothly and has high precision.
Japanese SMC correction floating joint and hydraulic buffer.
Swiss Remo Rapid High Frequency Connector Plug in.
German TKD high-frequency high-voltage cable.
Precise mechanical travel limit device.
The device can carry a power of up to 2000 watts.

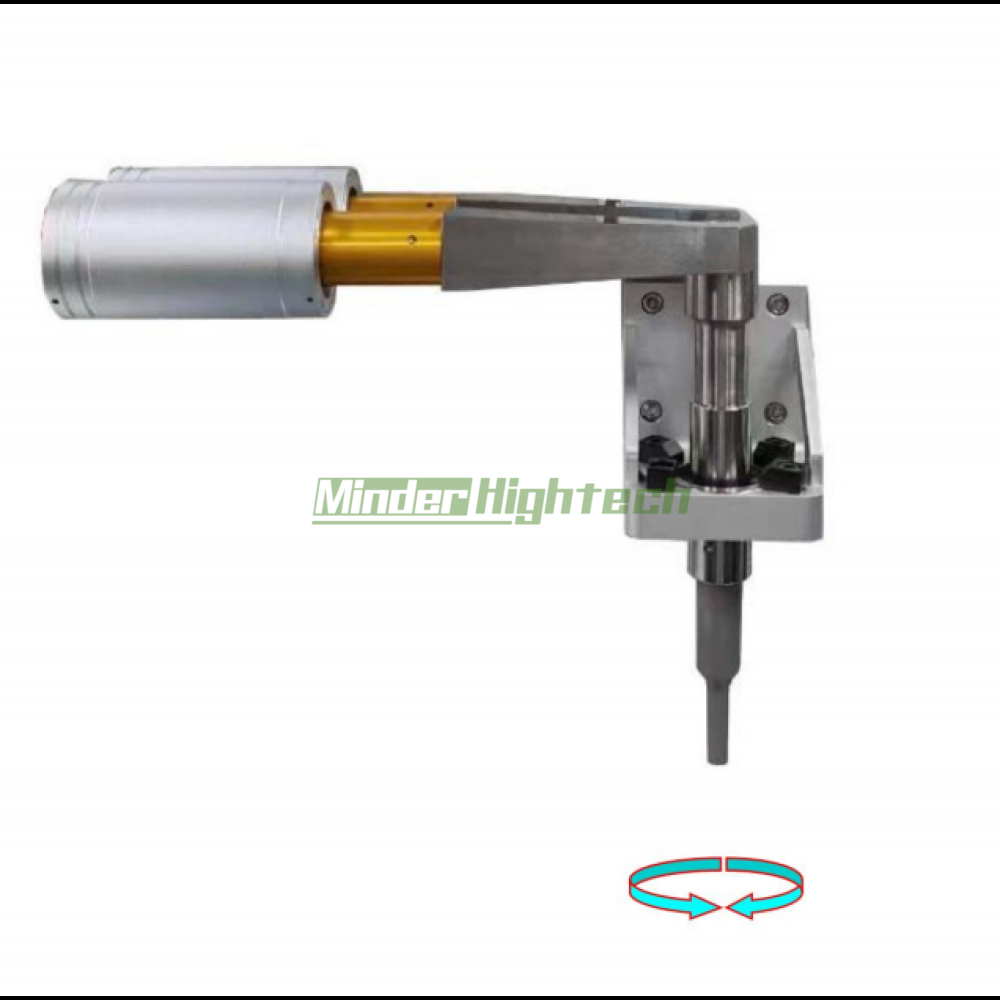

The ultrasonic triple resonance device can rotate freely 360 degrees axially.
It can upload product welding data and cooperate with MES system for data management.
2、Equipment parameters：
Ultrasonic frequency: 20KHz
Ultrasonic power: 2000W
Power Requirements: 220VAC, 50/60Hz, 8A Maximum
Pressure: 750N
Cylinder diameter: Φ 50mm
Compressed air: >0.4Mpa
Welding stroke: 100mm
Buffer mode: oil pressure buffer
Trigger mode: Time pressure depth
Welding mode: time, energy, depth
Operating interface: 10.4-inch touch screen industrial
Computer Data interface: USB MES
Operating System: Windows 7
Equipment weight: 40Kg
Mechanical dimensions: 1200 * 600 * 600mm
Language: Chinese
