Automatic and Pneumatic Forming System
Introduction: Automatic forming system adopting a precision servo-electric press（or pneumatic）and equipping an adjustable double-side mold is able to form all kinds of flat packaged chip (top lead chip, middle lead chip and bottom lead chip). Forming parameters are setting by PC, to achieve high-precision forming result.
Major Function
>Automatic adjust forming parameters of mold
>Precision pressure control
>Multi-segment pressurization program
>Precise Z-axis movement control
>High-precision pressure feedback
>Process parameters storage and calling
>Statistics analysis of processing data
Features
>The universal mold is very flexible and suitable for different chip size.
>It apply for seagull-type forming of SOP and QFP with all size.
>Positioning accuracy of the electric-servo press is 0.01 mm.
>Equipped with an automatic pick-and-place manipulator. The
motion control precision is 0.02mm.
>Welding lead cuting length : 0.8mm , 1 (customizable ) .
>Shoulder width : 0.5mm , 0.75mm , 1 .0mm (customizable )
Automatic Forming Machine

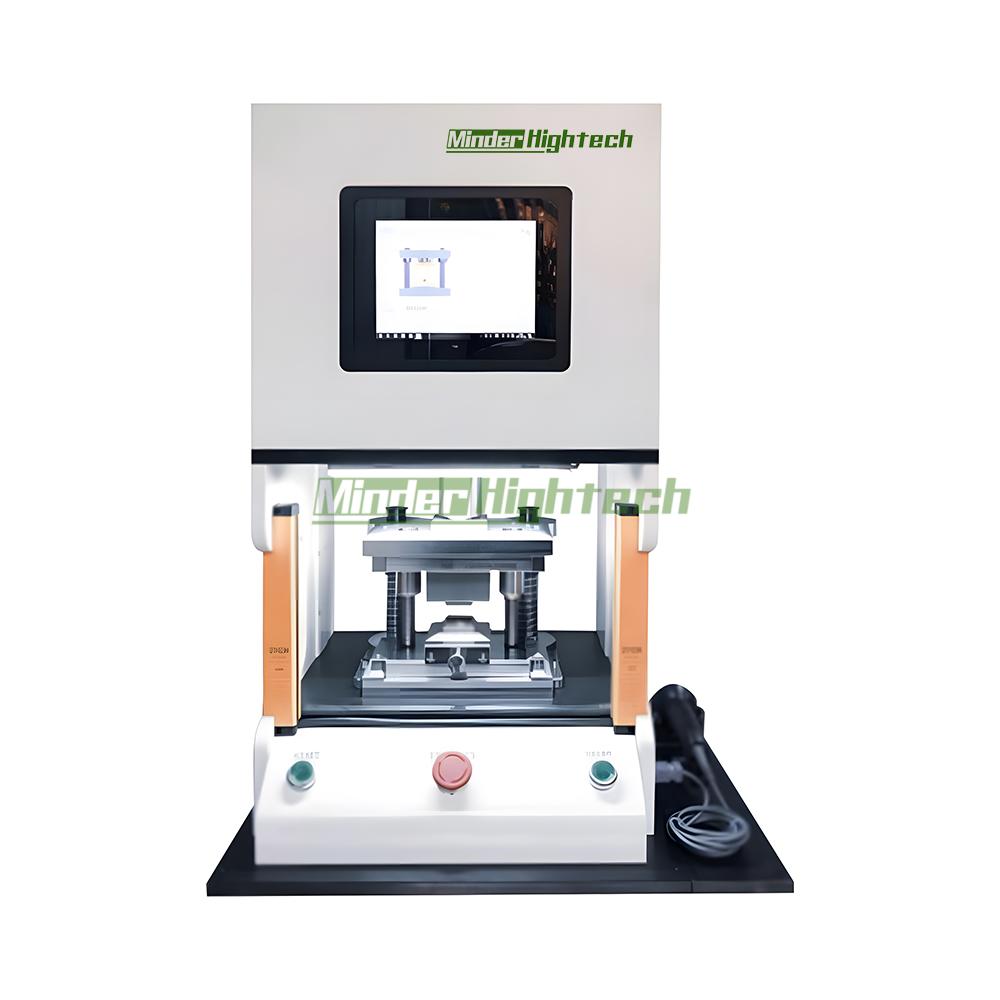

Automatic Forming Machine
Automatic forming machine is able to form all kinds of flat packaged chip.

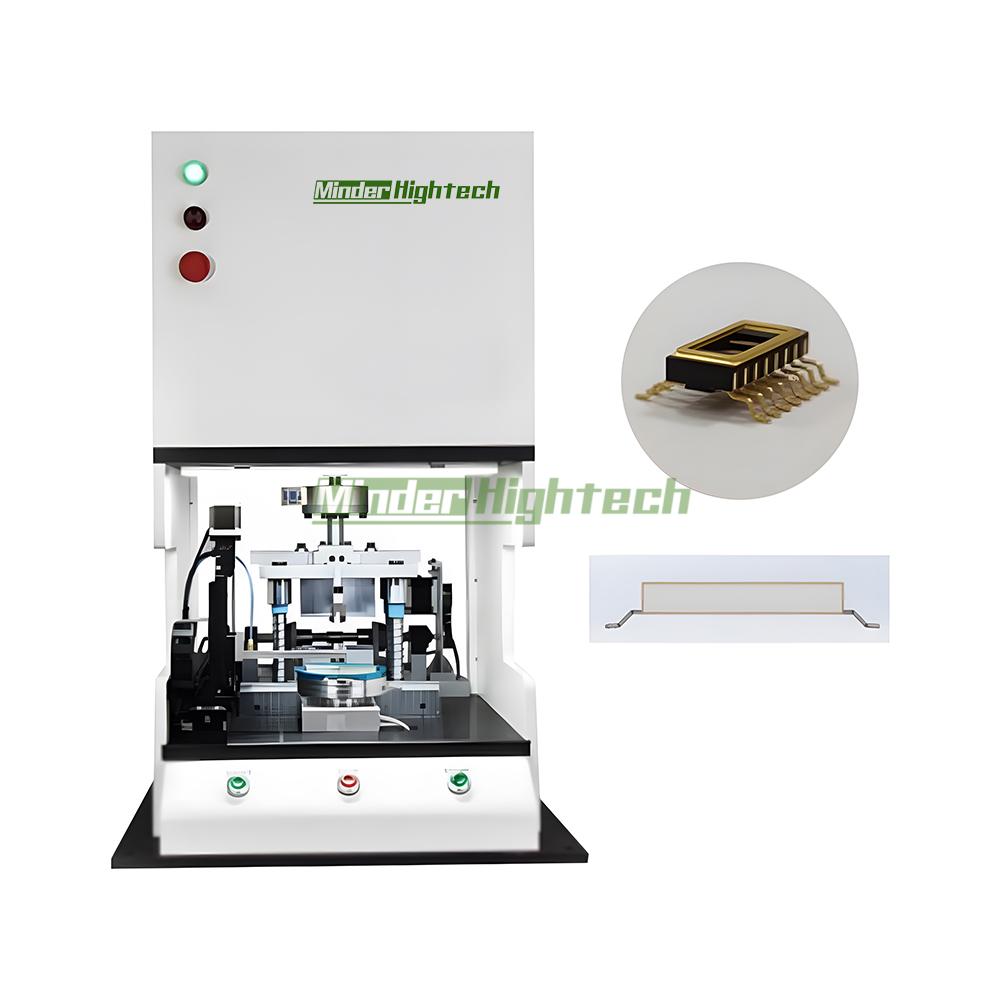

Automatic Bottom Lead Forming Machine

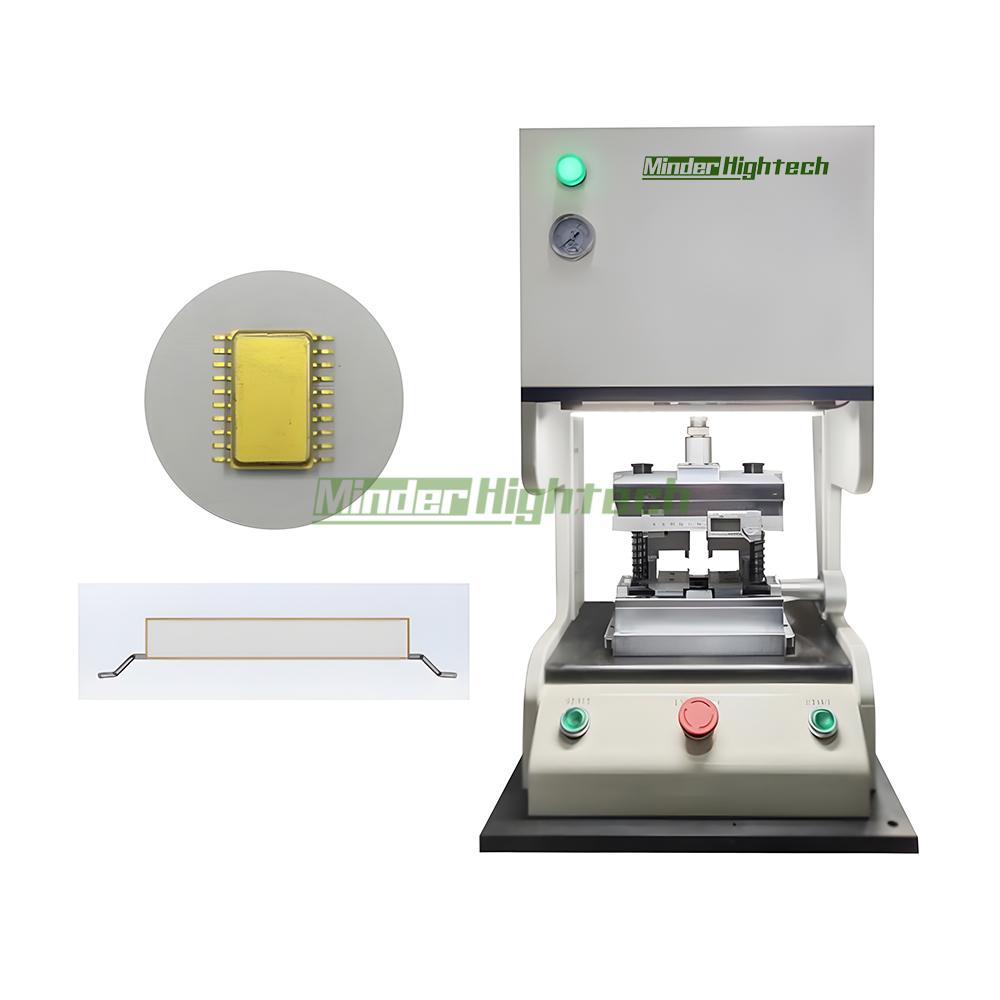

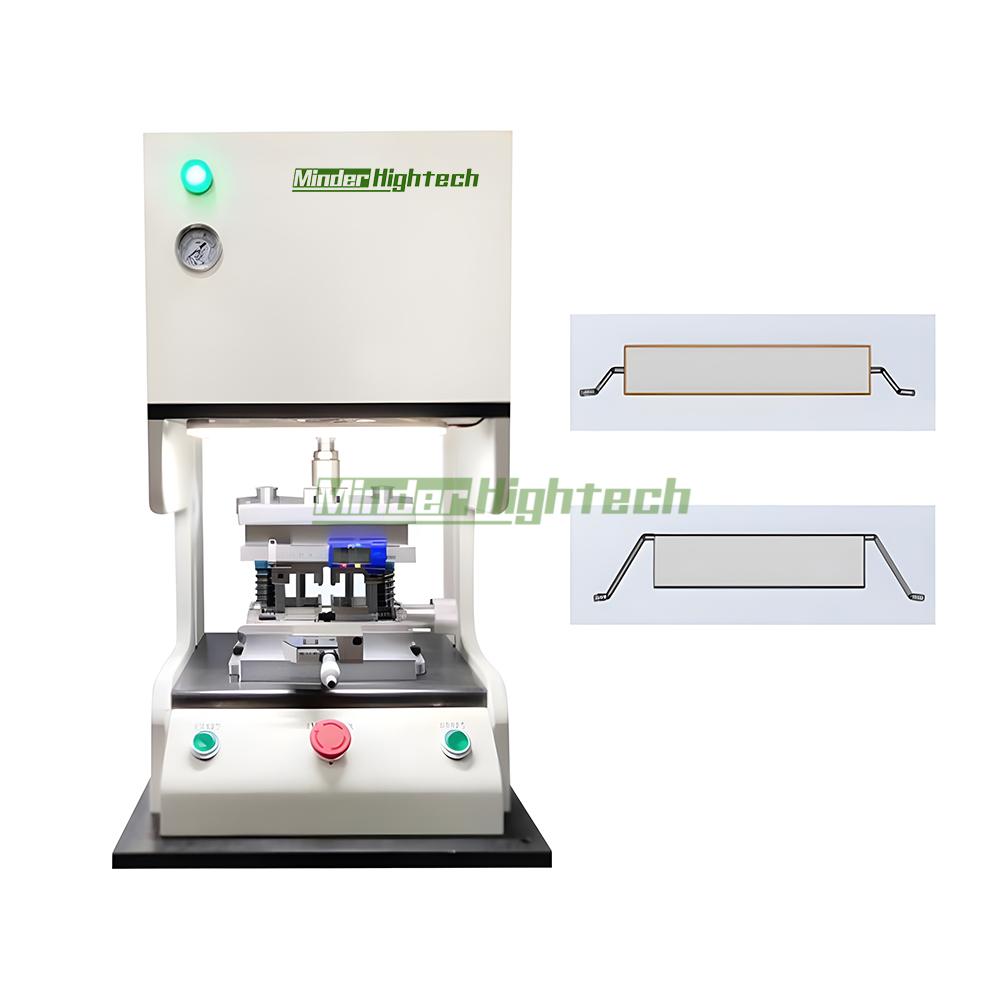

Pneumatic Double Side Forming Machine
Pneumatic Bottom Lead Forming Machine
Pneumatic Omega Forming Machine

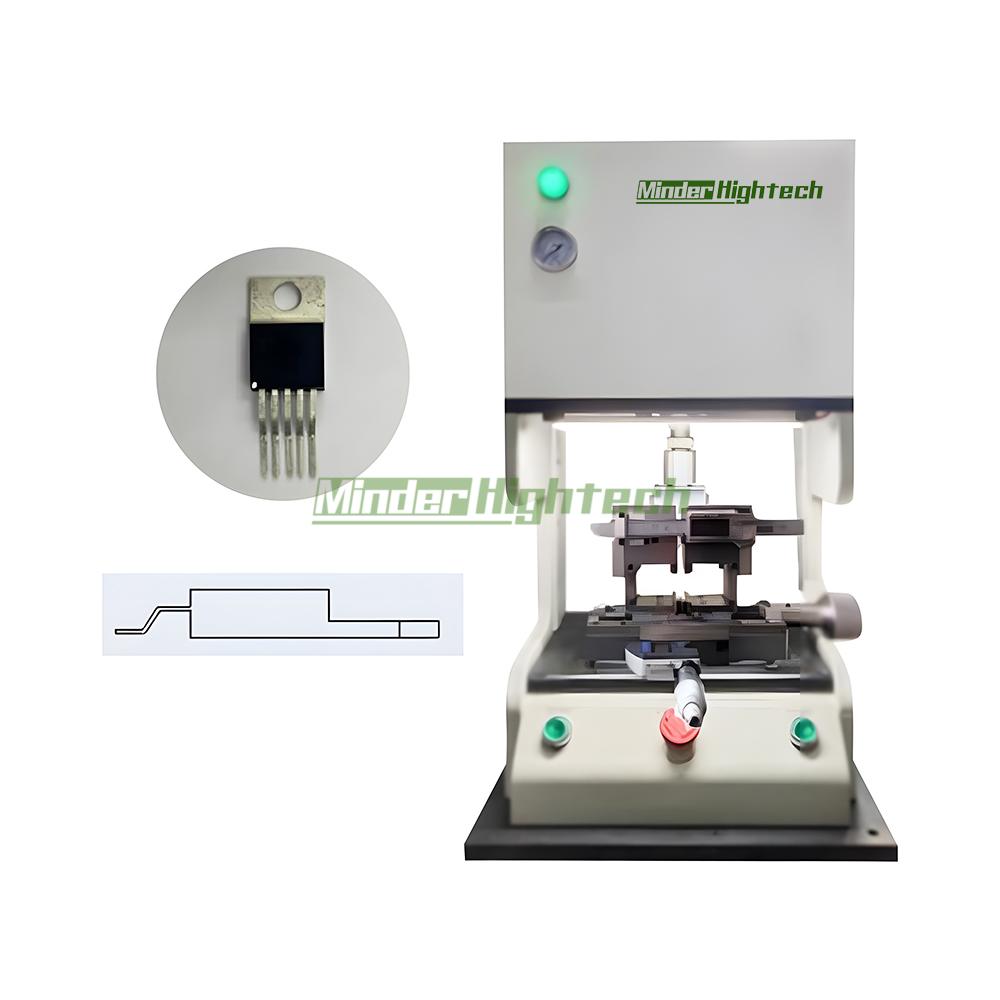

Pneumatic DPAK Component Forming Machine

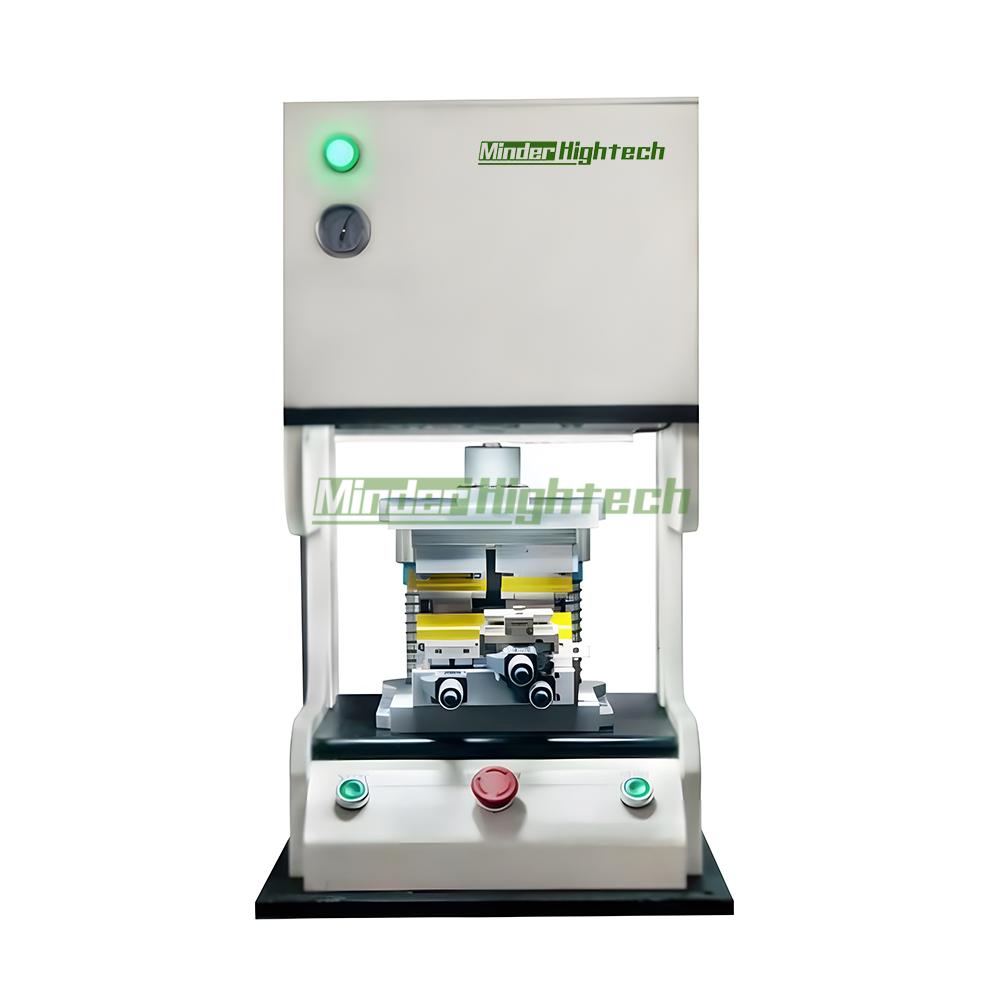

Pneumatic One Side Forming Machine
Fixed Mold Forming Machine
