Product Introduction

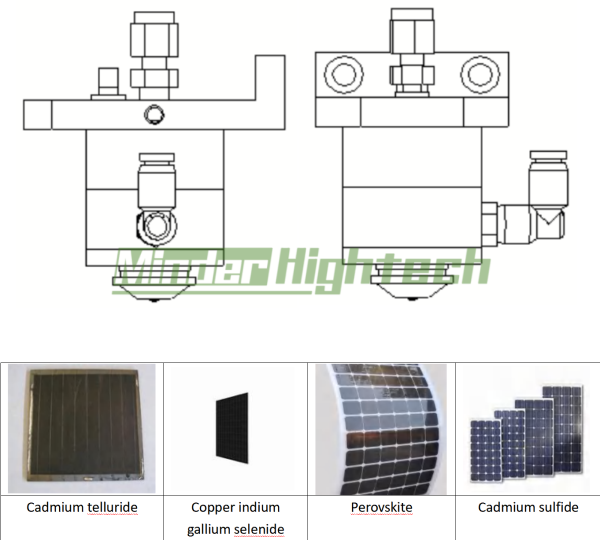

The spray pyrolysis ultrasonic nozzle can be used in R&D, pilot-scale, and industrial-scale spray pyrolysis systems to produce ultrafine powders.
Using ultrasonic atomization nozzle technology, it uniformly atomizes precursor solutions or suspensions and sprays them into a tubular furnace for high-temperature thermal decomposition to produce ultrafine powders. It is a key atomization device in spray pyrolysis (also known as spray pyrolysis) systems.
Product Features
1. Suitable for R&D and small-batch production
2. Compact desktop device, easy to move
3. Up to 95% raw material utilization
4. Uniform and stable coating with a uniformity of ±5%
5. Effective spraying area: 150 x 150
6. Gentle, low-speed spray to avoid overspray
7. Reduce paint consumption by 80%
8. Reduce air pollution
9. Self-cleaning nozzle design prevents clogging
10. Significantly reduces equipment downtime for maintenance
11. Ultra-low flow continuous or intermittent precision spraying
12. Corrosion-resistant stainless steel and titanium construction
Technical Parameters
|
Motion System |
XYZ three-axis motion assembly Motion repeatability: ±0.02mm Maximum motion speed: XY: 300mm/sec Z: 50mm/sec Laser-assisted positioning system |
|
Control System |
7-inch intelligent human-machine interface Self-developed MCU embedded system with three-level access and storage of 10,000 spray programs |
|
Carrying System |
Stainless steel high-temperature heating base (0-500°C) Temperature control accuracy: ±1°C; temperature uniformity: ±2°C |
|
Exhaust System |
Turbine exhaust system Can be integrated into laboratory or clean room exhaust systems |
|
Lighting System |
LED equipment lighting |
|
Ultrasonic System |
1 digital multi-closed-loop ultrasonic power controller Control accuracy 0.01W Equipped nozzle: 1 UCA123 converging type Average particle size 18µm Spray width 2-20mm Spray film thickness 10mm-100µm Spray flow rate range 0.05-4ml/min |
|
Liquid supply system |
1 magnetic stirring disperser 1 precision self-priming Z-axis syringe pump 1 25ml precision syringe |
|
Alarm system |
Three-color audible and visual alarm light |
|
Auxiliary system |
Monitoring system (optional) |
|
Power input |
220V AC 50/60Hz |
|
Gas input |
Purified/dry air or nitrogen (0.05MPa) |
|
Equipment dimensions |
520*500*640mm |
