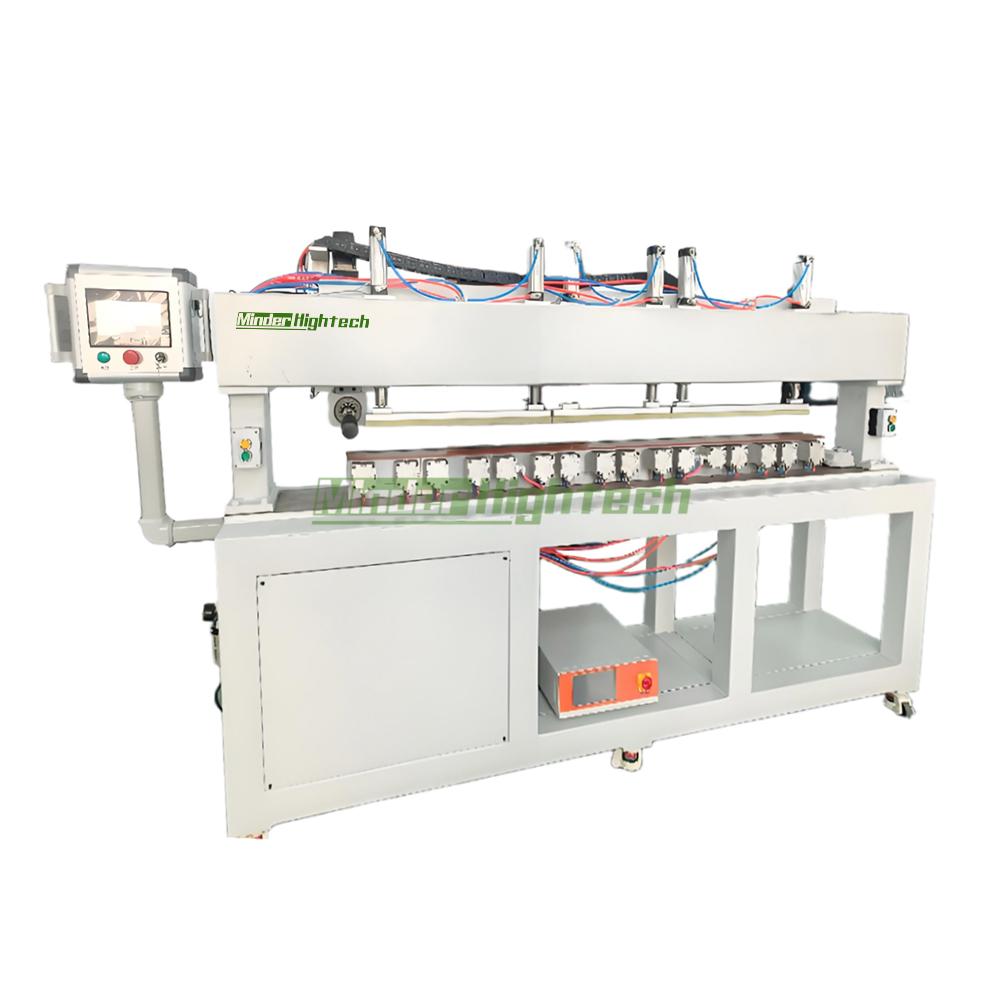

MDHS-URW2030 ultrasonic rolling welder
Technical Parameters
|
Model |
MDHS-URW2030 |
|
Operating Air Pressure |
0.4-0.9MPa |
|
Linear Speed |
5-15m/min |
|
Output Power |
Approximately 2000W |
|
Motion Control |
Pneumatic |
|
Operating Frequency |
20kHz |
|
Construction Material |
Square, with square steel connections |
|
Operating Mode |
Continuous |
|

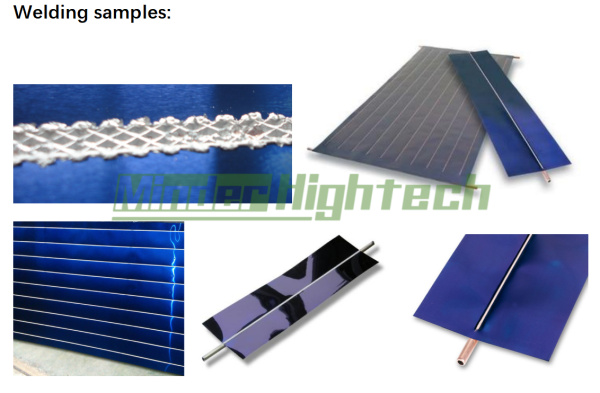

Welding Products |
Welding copper pipes to aluminum plates. |
|
Maximum welding length |
1.2m |
|
Copper pipe wall thickness |
0.3mm |
|
Power Supply |
C380V, 20A, three-phase, five-wire |
|
Electrical Box Dimensions |
500*400*180mm |
|
External Dimensions |
Length, Width, and Height (Subject to final design) |
Device Configuration:
|
Component Name |
Part Name |
|
Equipment Drive System |
PLC |
|
Pneumatic Cylinder |
|
|
Mechanical System |
Frame |
|
Support components |
|
|
Moving components |
|
|
Workbench |
|
|
Rollers |
|
|
|
Collector plate mobile platform |
|
|
Collector plate bracket |
|
Transmission |
Servo motor |
|
Cylinder |
|
|
Linear guide |
|
|
Pneumatic control components |
|
|
Electronic Control |
PLC |
|
Touch Screen |
|
|
Electronic Control Components |
|
|
Ultrasonic System |
Ultrasonic Control System |
|
Ultrasonic Welding Head + Base Die |
