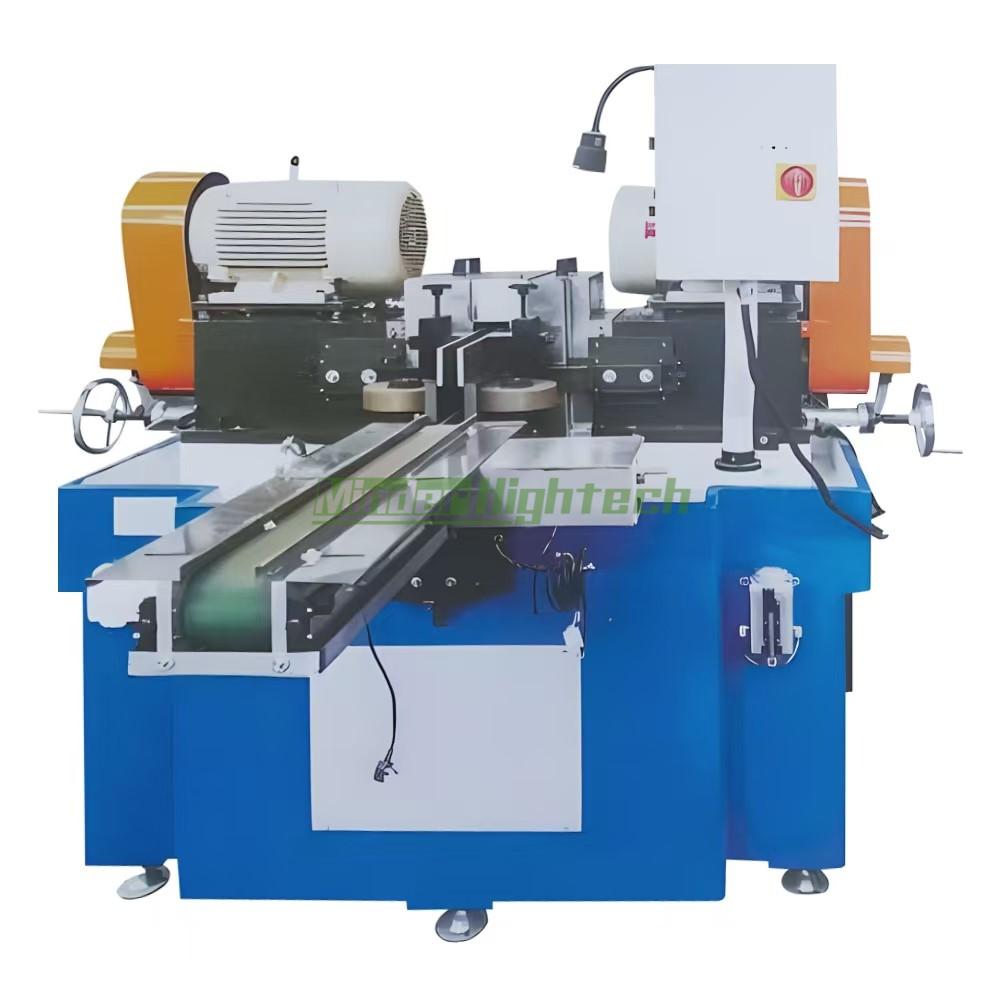

Machine tool usage
1.This machine tool is suitable for grinding large magnetic materials, ceramics, NdFeB, steel parts, steel inserts, etc.
2.The machine tool has strong adaptability and stability, and can grind various irregular and square materials. It is easy to operate, has high precision, high efficiency, and can automatically feed materials.
3.The product has undergone a one-time pass through grinding process, resulting in good consistency in the positional accuracy and dimensional precision of the machined parts' upper and lower surfaces.
4.This machine is widely used and high reliable.
5.Can grinding rectangular shape as well as round rod.
6.Easy operation, high efficiency, can optional automatically feeding material.
Technical parameters
1. Grinding head speed: 2000 revolutions per minute
2. Grinding head main motor: 11KW-2
3. Feeding motor: 180W
4. Feeding motor speed: 0-5 meters per minute (adjustable)
5. Workpiece grinding range (square material): thickness 20-70 MM, height 10-80MM
6. Grinding workpiece accuracy: ± 0.015
7. Grinding wheel type: Resin diamond 80-200 mesh (grinding magnetic steel)
8. CBN grinding wheel 60-120 mesh (for grinding high hardness steel)
9. Grinding wheel specification: Φ 4400XΦ200X35
10. Feeding type: Conveyor belt feeding mechanism
11. Whole machine weight Kg: 2000
12. Machine tool dimensions (length X width X height) MM: 2130X1600X1500
