MD-IDC9580 Inner diameter circle slicer

MD-IDC9580
Product description: MD-IDC9580 Inner diameter circle slicer
INQUIRY

Details
Inner circle fully automatic slicing machine is using inside circle to cut a variety of
semiconductors, crystal, ceramic, NdFeB magnetic material.
Installed in the spindle, the edge-type Diamond blade cutter is high-speed
rotating, the table was feeding by computer control of horizontal and vertical
movement, the material on the fixture of the table was cut into the required
product.
We have the semi-automatic/fully automatic inner circle clicking machine, within
a circle slicer two kinds of specifications, a variety of models.

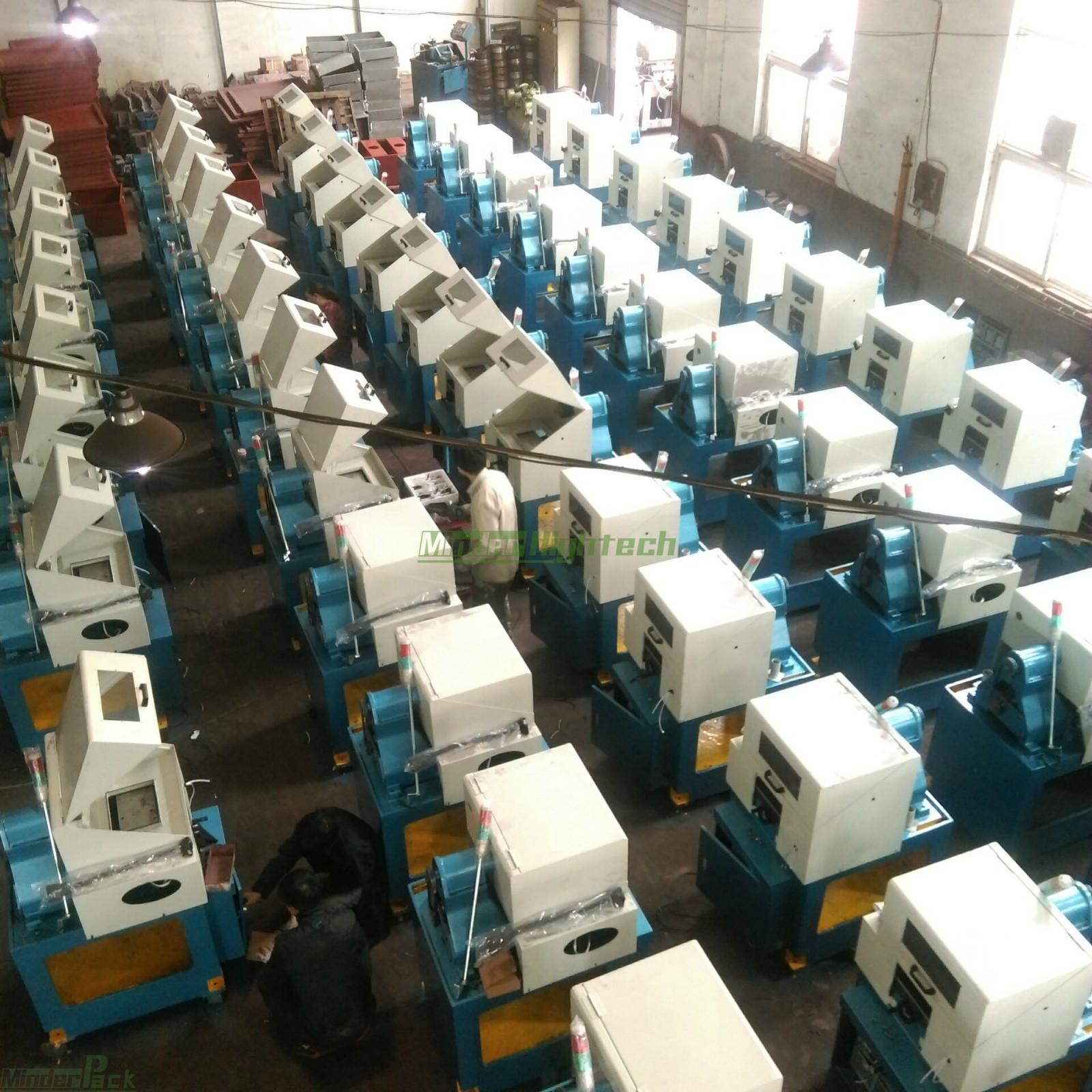

For the Automatic Slicer inner circle. a worker can operate about 16 units slicer

at the same time

MD-IDC9580
Main technical parameters:
Max machining size（mm） :φ95 ×80mm
Cutting speed （㎝²／㎜）： 3-6（㎝²／㎜）
Degree of balance sheets by cutting deviation（mm)： ±0.005㎜
Cutting film thickness（mm)： ≥０.３０
The thin-cut tolerance（mm） :±０.005㎜
Horizontal stroke（mm):120㎜
Longitudinal travel（mm） :110㎜
Spindle Electrical:3 Phase 1.1kw
Spindle Speed （r/min):2800Rev / min
Adjust the amount of work clamp:
Horizontal angle:±45º
Pitch angle of elevation:±10º
Vertically（mm):20
Cooling tank capacity（kg） :50kg
Cooling tank motor: 3 Phase 0.12kw 2780r/min
Power:Three-phase four-wire 50Hz 380V
Dimensions(mm):1130 ×850 ×1500
Weight（kg):~1400（kg）
