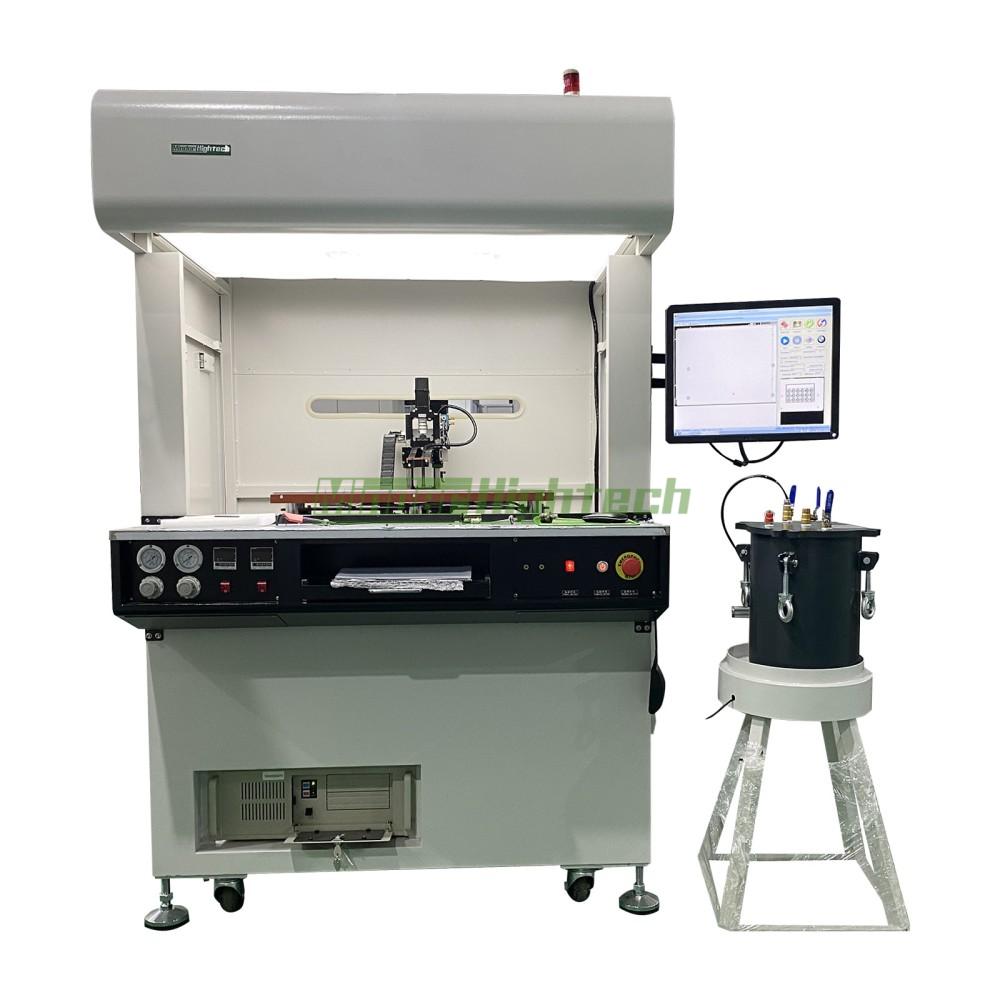

Equipment features
1. Multi-camera positioning system is used to realize 360 degree smart identification and positioning. Aluminum disc is used to directly place plate sealing adhesive. The products can be placed arbitrarily.
2. It can automatically identify bad PCB boards or PCB boards that do not need to be sealed with glue. It can selectively seal products in aluminum plates to reduce defective rate and save production cost.
3. The self-defined gluing track can meet requirements of different shapes. The length, position, speed, height and the gluing state of each movement track of X-Y-Z axles can be programmed arbitrarily.
4. Optional high-precision laser height detection and distance measurement sensor can accurately detect changes of product height and eliminate the influence of different product heights on sealant.
5. The glue-sensing system can detect the change of the glue quantity in real time. When the glue material is supplied, it will automatically give alarms to ensure that the glue barrel has enough glue materials.
6.it is applicable to precising dispensing operations and products with strict appearance and thickness requirements, such as display module, wireless mouse, watch, USB disk and other electronic products with high requirements on appearance and shape.
|
Equipment specifications |
|
|
Product model |
MDCOB501 |
|
Dispensing speed |
8-25k/hour/ |
|
Dispensing precision |
±0.05mm |
|
X/Y precision |
±0.03mm |
|
Positioning speed |
＜1 s |
|
Transmission model |
Servo motor +Ball screw |
|
Dispensing head |
Precising needle-hitting dispensing value (with heating function) |
|
Dispensing scope |
325mm*260mm/ |
|
Dispensing air pressure |
0.3-0.6Mpa |
|
Recognition method |
PCB board full visual automatic alignment |
|
Operating system |
All Chinese operating system |
|
Software system |
E-sight multi-camera full-point identification positioning system |
|
Power supply |
220V,50HZ |
|
Equipment power |
2600W/ |
|
Machine dimensions |
1155mm*1065(865)mm*1940mm |
|
Machine weight |
About 580Kg |
