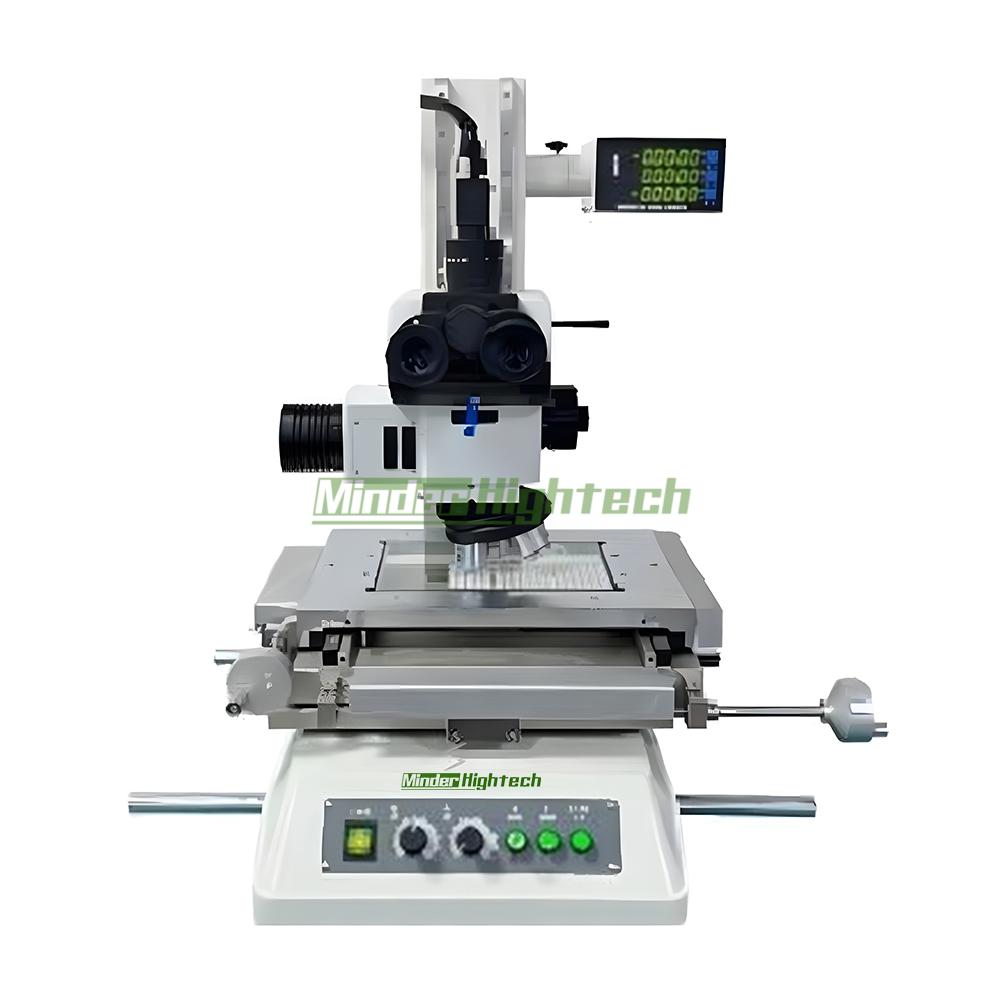

MDLB-MM200 Metallographic microscope

Technical parameters

Model	MDLB-MM200
Travel range	200×100×150 mm
Stage dimensions	358×258 mm
Glass dimensions	230×160 mm
Overall dimensions	700×800×800 mm
Optical System	Infinity Optical System
Objective Lenses	5X,10X,20X,50X
Weight	85 kg
Scale resolution	±0.1μm on the Z axis,±0.5μm on the XY axis (±0.1μm resolution optional)
Field of View	Reflected Image
Surface Illumination	3W/Coaxial LED Light Source
Movement	Manual
Eyepiece	10X
Observation Method	Brightfield / Darkfield Switchable
Bottom Illumination	3W/Coaxial LED Light Source
X/Y/Z Positioning Accuracy	±0.1μm
X/Y/Z Repeatability	±0.1μm
X/Y Measurement Accuracy	(3+L/100)μm,"L"is the measured length
Z-Axis Measurement Accuracy	(3+L/25)μm,"L"is the measured height
Digital Display Functions	RS232 Output,X/Y/Z Zero/Center,Metric/lnch Conversion, Accuracy Calibration
Z-Axis Controller	High-precision coaxial wheel controls up and down movement
Z-Axis Positioning Accuracy	±0.1μm
Operating Voltage	AC220V
Rated Power	100W
