PCBA separator

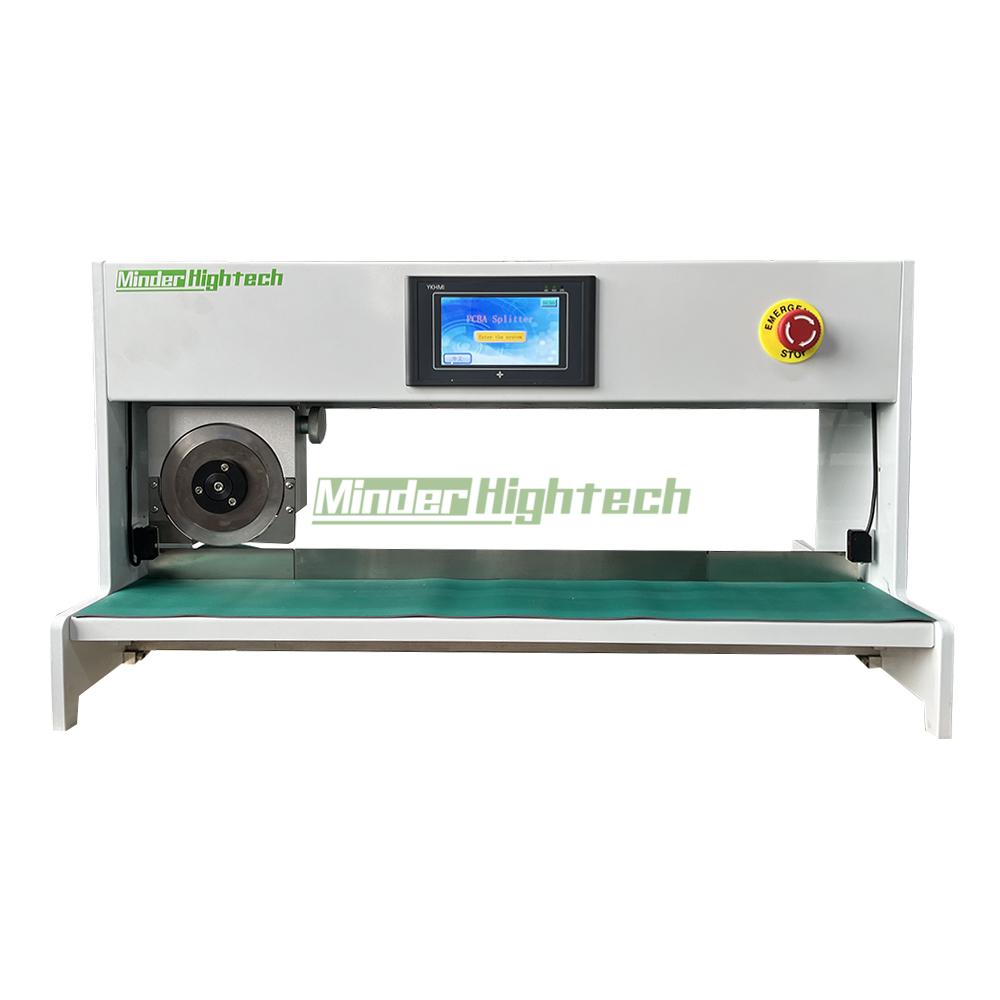

Blade moving type PCBA separator

ZDF-450
产品描述：PCBA Separator
在线订购

Features and Advantages:
1.PCBA does not move during the cutting process, and the circular knife slides.to ensure that the electronic components of the substrate are not damaged due to movement.
2.The sliding speed and cutting stroke of circular knife can be adjusted flexibly according to the actual use.
3.According to the depth of V groove and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted.
4.Stepper motor drive, power can be self-locking, to achieve fine cutting positioning.
5.Infrared light screen switch safety protection to ensure safe operation of the machine.
6.The upper and lower blades are made of high speed steel imported from Japan to improve the service life and cutting effect of the blades.

Specification

equipment model	ZDF-450
Blade material	Japan high speed steel
Blade life	500000 times
Cutter wheel fine adjustment	0-2mm
The lower plate cutter can be adjusted	0-15mm
Maximum board length	450 MM
Plate thickness	0.6-3.5 (MM)
maximum height of V-slot edge device	50 MM
minimum distance between V slot and components Type of panel	0.5 MM
equipment power	60 W
input voltage	AC 220 V /5 0-60 HZ
overall dimension(L/W/H)	680× 530×450 (MM)
equipment weight	46 KG
